Spare Parts

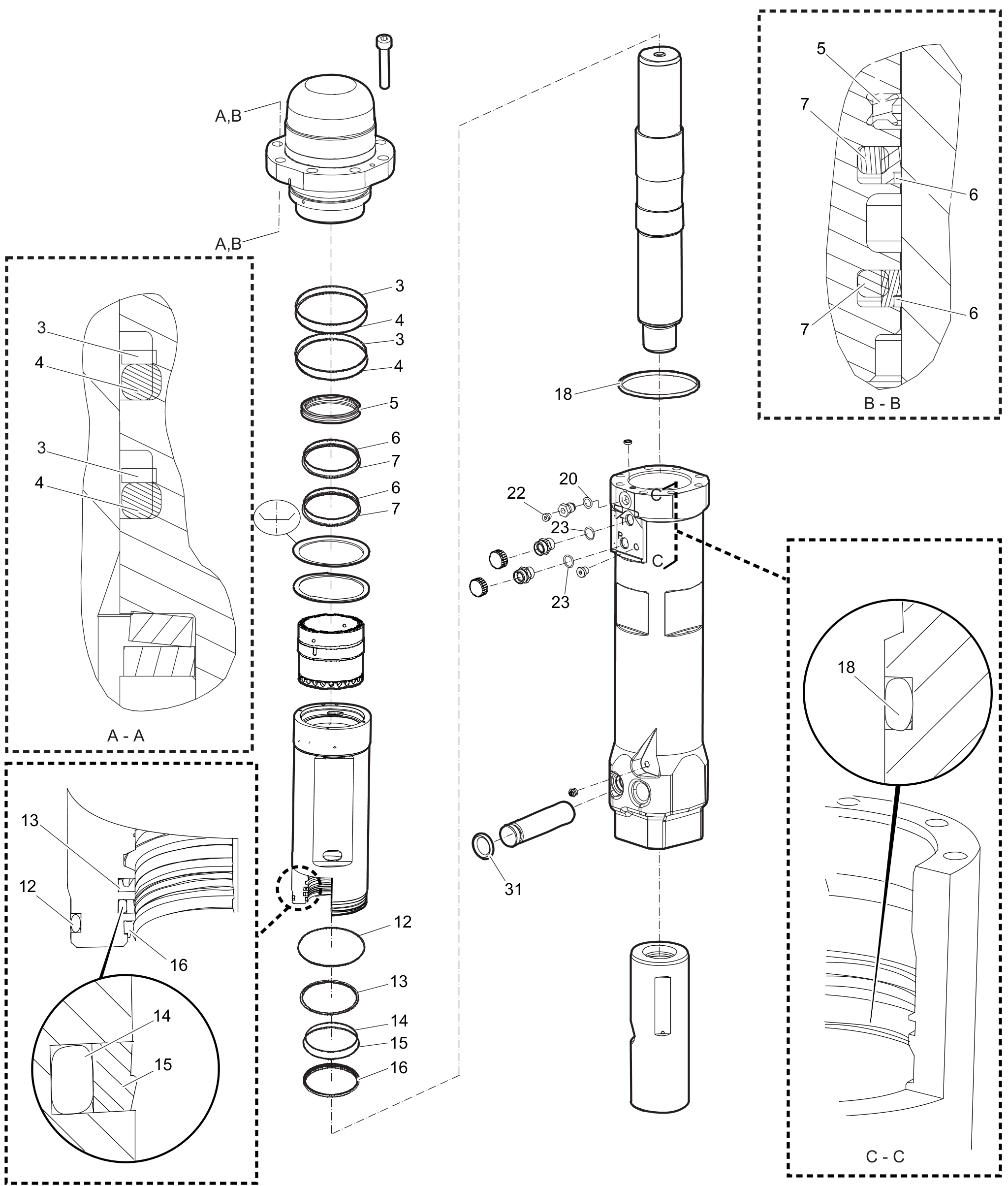

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3382070009 | SEAL KIT | 1 | ||||
| 3361192023 | BACK-UP RING | 2 | ||||
| 3361192022 | O-RING | 2 | ||||
| 3361192017 | QUAD-RING | 1 | ||||
| 3361192018 | SEAL | 2 | ||||
| 3361192019 | O-RING | 2 | ||||
| 3361192025 | O-RING | 1 | ||||
| 3361192027 | SEAL | 1 | ||||
| 3361192029 | O-RING | 1 | ||||
| 3361192028 | SEAL | 1 | ||||
| 3361192030 | WIPER | 1 | ||||
| 3315296620 | SEAL | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192067 | O-RING | 1 | ||||
| 0663212006 | O-RING | 1 | ||||
| 0665090014 | SEAL RING | 1 | ||||
| 3361192066 | O-RING | 1 |
