Service, repair and wear part kits
Spare Parts

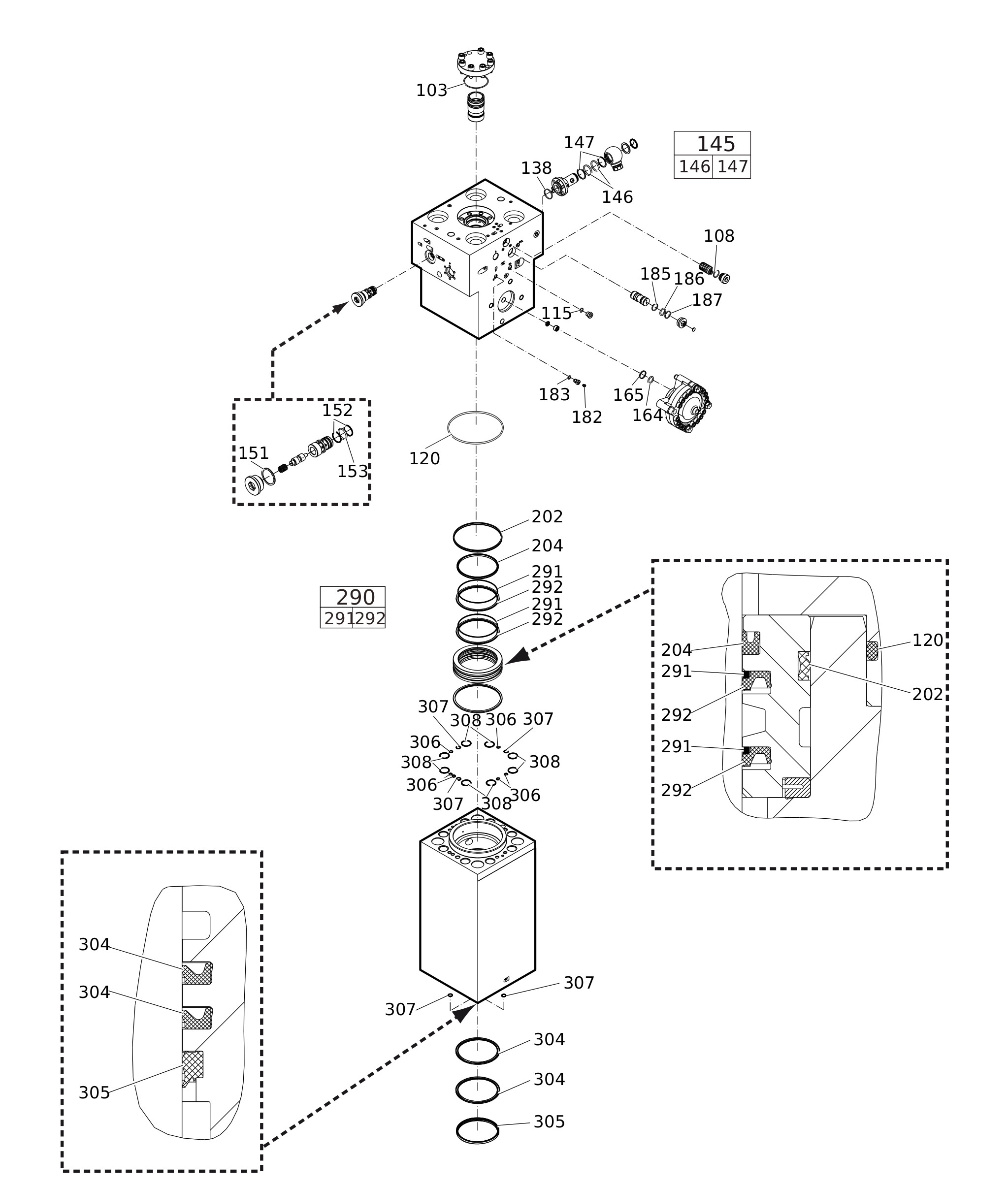

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363123002 | Seal kit | 1 | ||||
| 3360314849 | O-ring | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3363103803 | O-RING | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3361850422 | SEAL KIT | 2 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3360314364 | O-RING | 1 | ||||
| 3360328046 | BACK-UP RING | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3363103874 | Seal | 1 | ||||
| 3363103804 | Seal | 1 | ||||
| 3363103868 | Seal kit | 2 | ||||
| - | Seal | 1 | ||||
| - | Back-up ring | 1 | ||||
| 3363122999 | Seal | 2 | ||||
| 3363103805 | Wiper | 1 | ||||
| 3362267583 | SEAL | 6 | ||||
| 3362267585 | SEAL | 5 | ||||
| 3362267589 | Seal | 8 |
