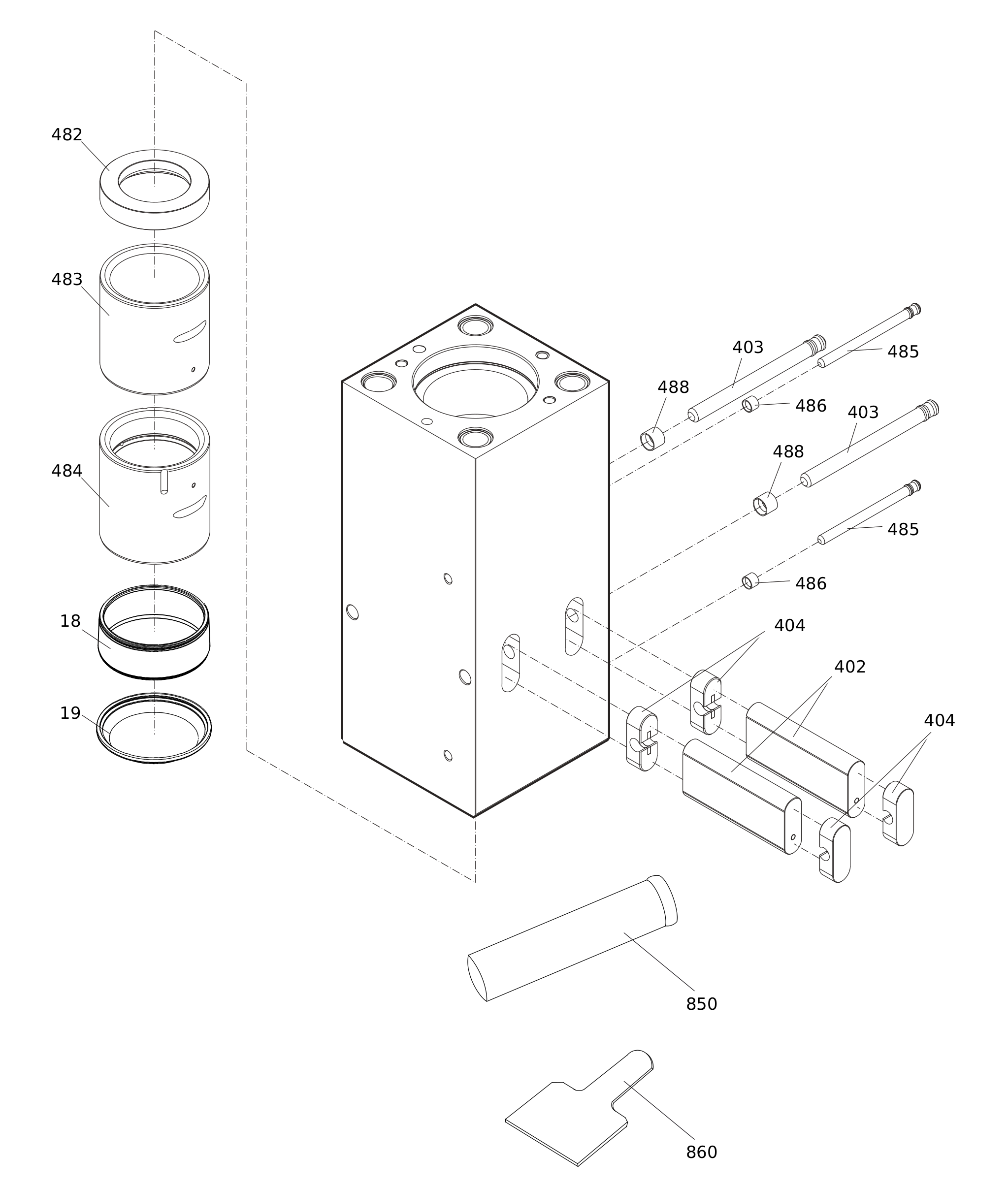

Service, repair and wear part kits
Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363094378 | Lower breaker part kit (bronze) for DustProtector version | 1 | ||||
| 3363088651 | Base for wiper | 1 | ||||
| 3363034265 | Wiper | 1 | ||||
| 3361331529 | Retainer bar | 2 | ||||
| 3362261540 | Bolt | 2 | ||||
| 3362262921 | Plug | 4 | ||||
| 3363069083 | Impact ring | 1 | ||||
| 3363069137 | Wear bush | 1 | ||||
| 3363088511 | Wear bush (bronze) | 1 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3362260433 | LOCKING BUSH | 2 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 | ||||
| 3361852175 | TEST GAUGE LOWER WEAR BUSH | 1 |
