Options / accessories
Spare Parts

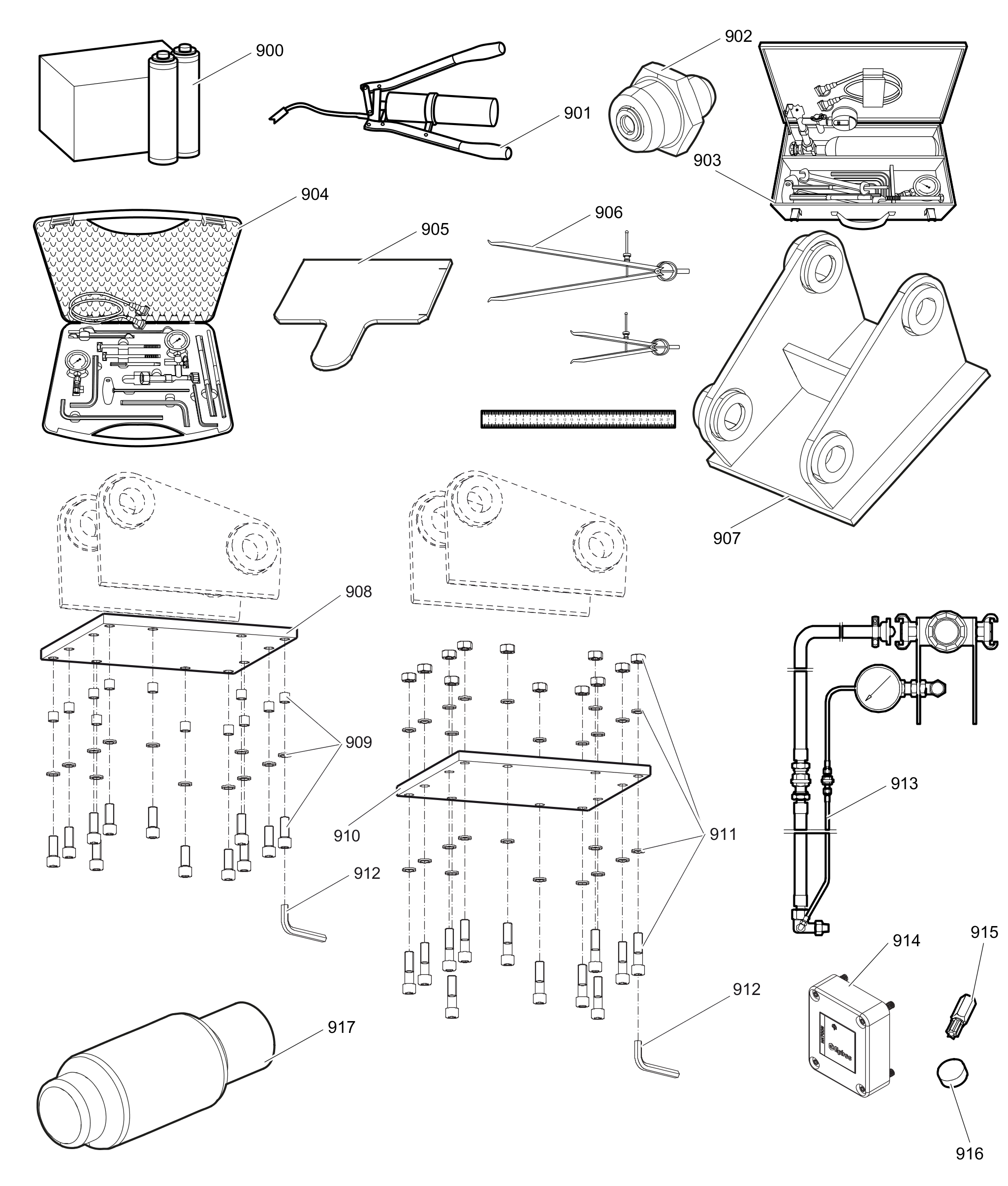

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | BIO CHISEL PASTE CARTRIDGE, 12 x 550 g (1.2 lbs) | 1 | ||||
| 3363091200 | CHISEL PASTE CARTRIDGE, 12 x 500 g (1.1 lbs) | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363089845 | MAINTENANCE AND CHARGING BOX with nitrogen cylinder, 5 l, 1.1 gal (1.32 US gal) | 1 | ||||
| 3363094940 | MAINTENANCE AND CHARGING BOX without nitrogen cylinder | 1 | ||||
| 3363104653 | Test gauge lower wear bush | 1 | ||||
| 3363094952 | INSIDE CALLIPERS UPPER WEAR BUSH | 1 | ||||
| - | ADAPTER PLATE matching the carrier. Consult the authorized Customer Center/Dealer in your area. | 1 | ||||
| 3363104727 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363087304 | BOLT KIT | 1 | ||||
| 3363104725 | BASE PLATE WITH THROUGH BORINGS | 1 | ||||
| 3363094576 | BOLT KIT | 1 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 | ||||
| 3363090531 | ADAPTER KIT FOR UNDERWATER APPLICATIONS | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ192325 - (HB 3600 with lower wear bush steel)from s/n DEQ192164 - (HB 3600 with lower wear bush bronze)from s/n DEQ200304 - (HB 3600 DP with lower wear bush steel)from s/n DEQ200453 - (HB 3600 DP with lower wear bush bronze) | |||
| 3315442520 | HATCON KIT 1 (LTE) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ192325 - (HB 3600 with lower wear bush steel)from s/n DEQ192164 - (HB 3600 with lower wear bush bronze)from s/n DEQ200304 - (HB 3600 DP with lower wear bush steel)from s/n DEQ200453 - (HB 3600 DP with lower wear bush bronze) | |||
| 3315439105 | SECURITY BIT HATCON | 1 | ||||
| 3315439106 | MAGNET HATCON | 1 | ||||
| 3363104327 | Piston retainer | 1 | Consult the authorized Customer Center/Dealer in your area. |
