Options / accessories
Spare Parts
Optional equipment

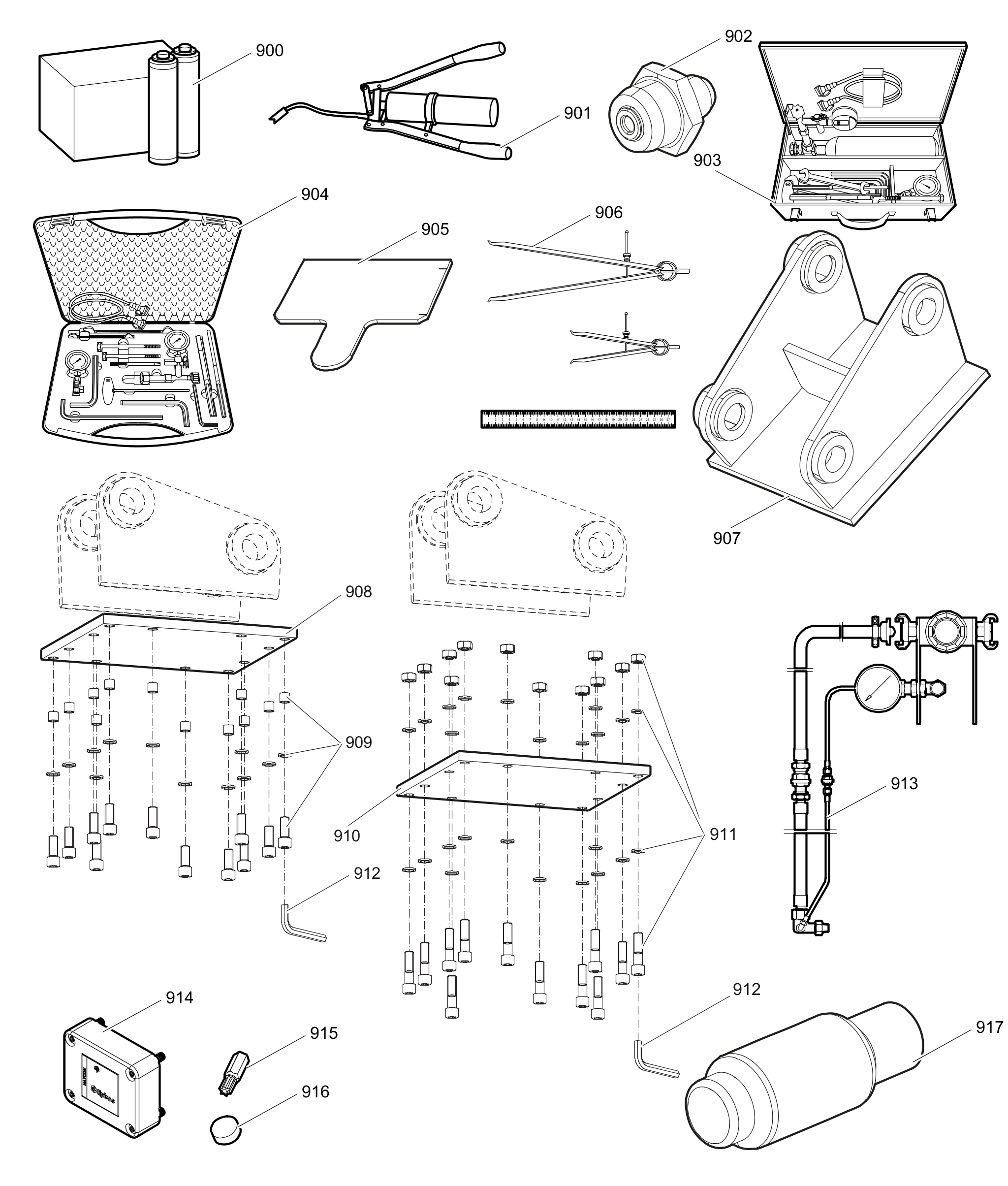

# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | CHISEL PASTE | 1 | ||||
| 3363091200 | CHISEL PASTE | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363089845 | MAINTENANCE AND CHARGING BOX with nitrogen cylinder, 5 l, 1.1 gal (1.32 US gal) | 1 | ||||
| 3363094940 | MAINTENANCE BOX | 1 | ||||
| 3363069735 | TEST GAUGE LOWER WEAR BUSH | 1 | ||||
| 3363094952 | INSIDE CALLIPER | 1 | ||||
| 00015 | ADAPTER PLATE | 1 | ||||
| 3363104727 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363087304 | BOLT KIT | 1 | ||||
| 3363104725 | BASE PLATE WITH THROUGH BORINGS | 1 | ||||
| 3363094576 | BOLT KIT | 1 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 | ||||
| 3363090531 | ADAPTER KIT | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200003 - (HB 3100 with lower wear bush steel)from s/n DEQ192296 - (HB 3100 with lower wear bush bronze)from s/n DEQ200086 - (HB 3100 DP with lower wear bush steel)from s/n DEQ192259 - (HB 3100 DP with lower wear bush bronze) | |||
| 3315442520 | HATCON KIT 1 | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200003 - (HB 3100 with lower wear bush steel)from s/n DEQ192296 - (HB 3100 with lower wear bush bronze)from s/n DEQ200086 - (HB 3100 DP with lower wear bush steel)from s/n DEQ192259 - (HB 3100 DP with lower wear bush bronze) | |||
| 3315439105 | SECURITY BIT | 1 | ||||
| 3315439106 | MAGNET | 1 | ||||
| 3363092985 | Piston retainer | 1 | Consult the authorized Customer Center/Dealer in your area. |
