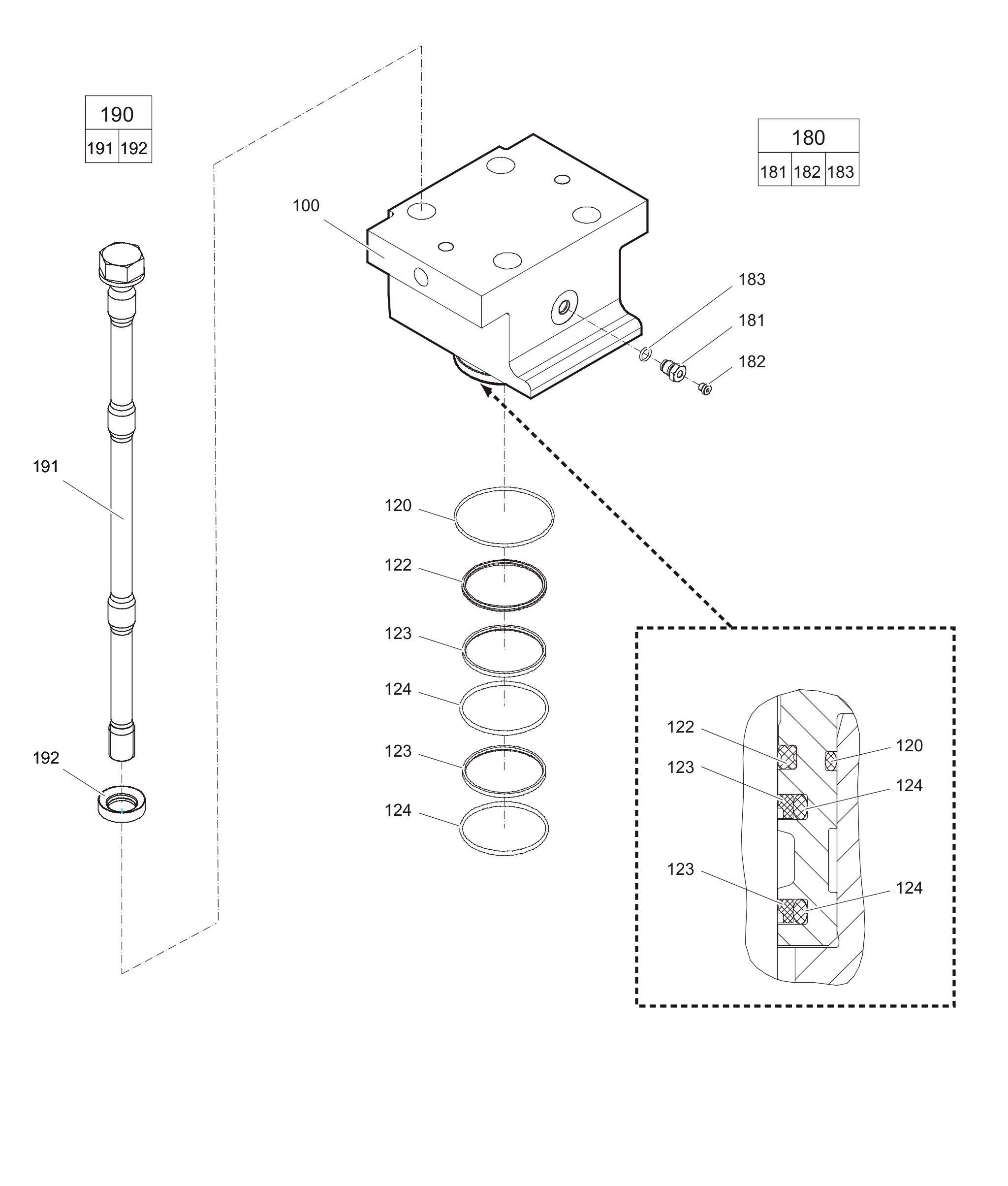

Percussion unit part 1: cylinder cover
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363091704 | Cylinder cover | 1 | ||||
| 3360314664 | O-RING | 1 | ||||
| 3363091710 | SEAL | 1 | ||||
| 3363091708 | Seal | 2 | ||||
| 3363091709 | O-RING | 2 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363091702 | Tensioning bolt complete | 4 | ||||
| 3363092873 | Tensioning bolt | 1 | ||||
| 3363093645 | Washer | 1 |
