Mechanical
Spare Parts

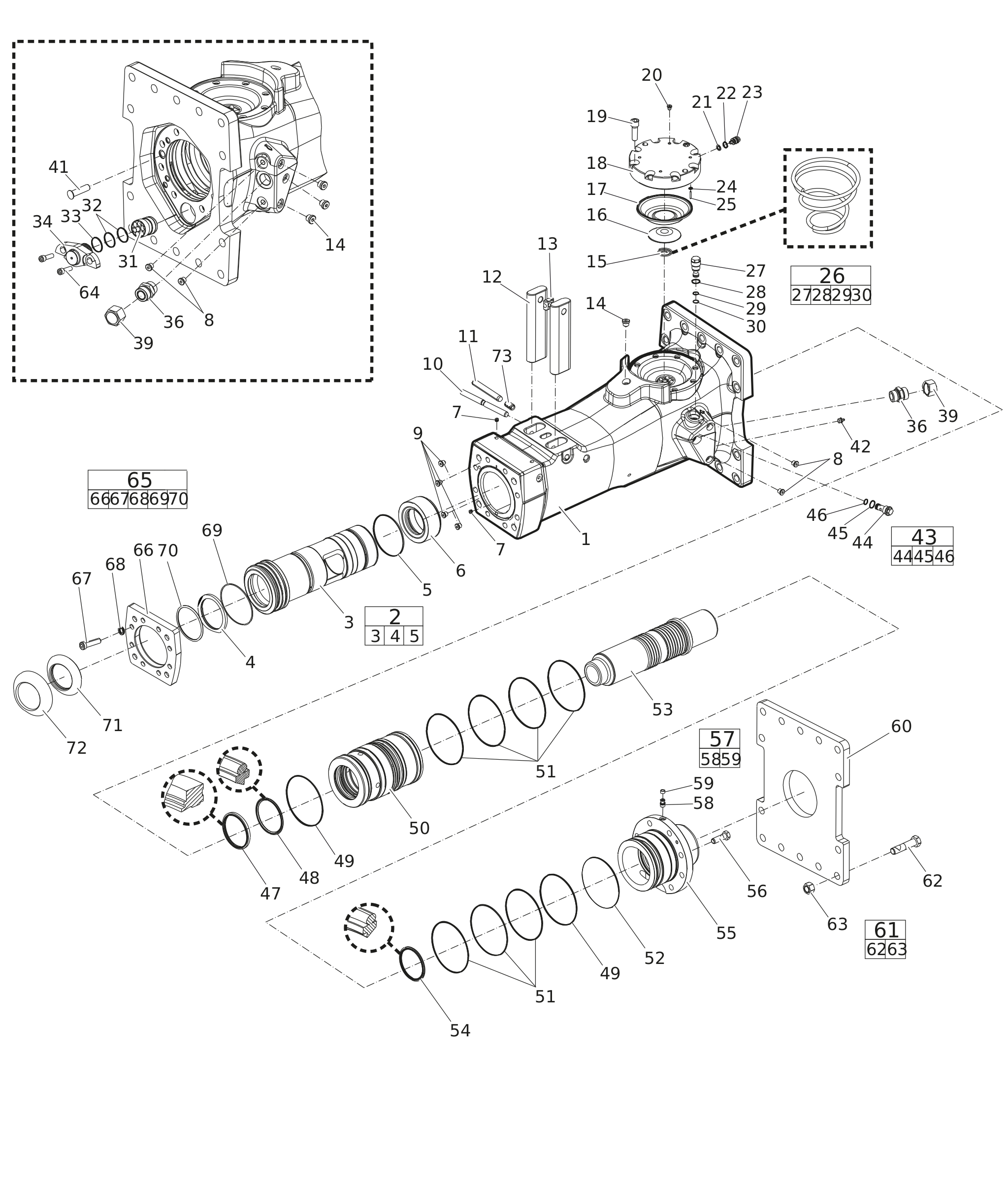

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | NUT | 0 | ||||
| - | CHECK VALVE | 0 | ||||
| - | SCREW | 14 | ||||
| - | CHECK VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 0 | ||||
| - | NUT | 14 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | SCREW | 0 | ||||
| - | CHECK VALVE | 0 | ||||
| - | BREAKER BODY | 1 | ||||
| 3382070197 | BUSHING, complete | 1 | ||||
| - | BUSHING | 1 | ||||
| 3315303000 | SCRAPER RING | 1 | ||||
| 0663210823 | O-RING | 4 | ||||
| 3315302800 | STOP RING | 1 | ||||
| 0686100009 | PLUG | 2 | ||||
| 0686644207 | PLUG | 4 | ||||
| 3315395200 | WATER NOSSLE | 4 | ||||
| 3315319110 | LOCK PIN | 1 | ||||
| 3315434900 | BUSHING PIN | 1 | ||||
| 3315442750 | RETAINER BAR | 2 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315303500 | COIL SPRING | 1 | ||||
| 3315303201 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315416300 | DIAPHRAGM | 1 | ||||
| 3315303100 | DIAPHRAGM COVER | 1 | ||||
| 0211196544 | HEXAGON SOCKET SCREW | 8 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 3315365800 | PRESSURE RELIEF VALVE, complete | 1 | CAS No. see chapter "Environmental Product Compliance - REACH Declaration" | |||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 14 | ||||
| - | BREAKER BODY | 14 | ||||
| 0663212141 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0661200401 | BACK-UP RING | 1 | ||||
| 3315312100 | CONTROL VALVE | 1 | ||||
| 0663990026 | SEAL RING | 2 | ||||
| 0663211491 | O-RING | 1 | ||||
| 3315362820 | VALVE COVER | 1 | ||||
| 3176634800 | NIPPLE | 1 | ||||
| 3176542900 | CAP | 2 | ||||
| 3315336700 | PLUG | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| - | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR, 7.7 mm (0.30 in.) | 1 | ||||
| 0665909965 | WIPER | 1 | ||||
| 0665070134 | PISTON ROD SEAL | 1 | ||||
| 0663990027 | SEAL RING | 2 | ||||
| 3315302520 | LINER | 1 | ||||
| 0663211303 | O-RING | 7 | ||||
| 0663211506 | O-RING | 1 | ||||
| 3315442000 | PISTON | 1 | ||||
| 0665070133 | PISTON ROD SEAL | 1 | ||||
| 3315303410 | BACK HEAD | 1 | ||||
| 0147155503 | SCREW, HEX HEAD | 8 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 3315307700 | BASE PLATE | 1 | ||||
| 3315323990 | BOLT KIT | 1 | ||||
| 0211110495 | HEXAGON SOCKET SCREW | 2 | ||||
| - | WEAR PLATE, complete | 1 | ||||
| 3315442710 | WEAR PLATE | 1 | ||||
| 3315431101 | HEXAGON SOCKET SCREW | 8 | ||||
| 0333520027 | LOCK WASHER | 8 | ||||
| 0663210658 | O-RING | 1 | ||||
| 0663212007 | O-RING | 1 | ||||
| 3315440404 | DUST COVER | 1 | ||||
| 3315440403 | FRONT SHIELD | 1 | ||||
| 0108110322 | SPRING PIN | 1 |
