Service, repair, wear part kits
Spare Parts

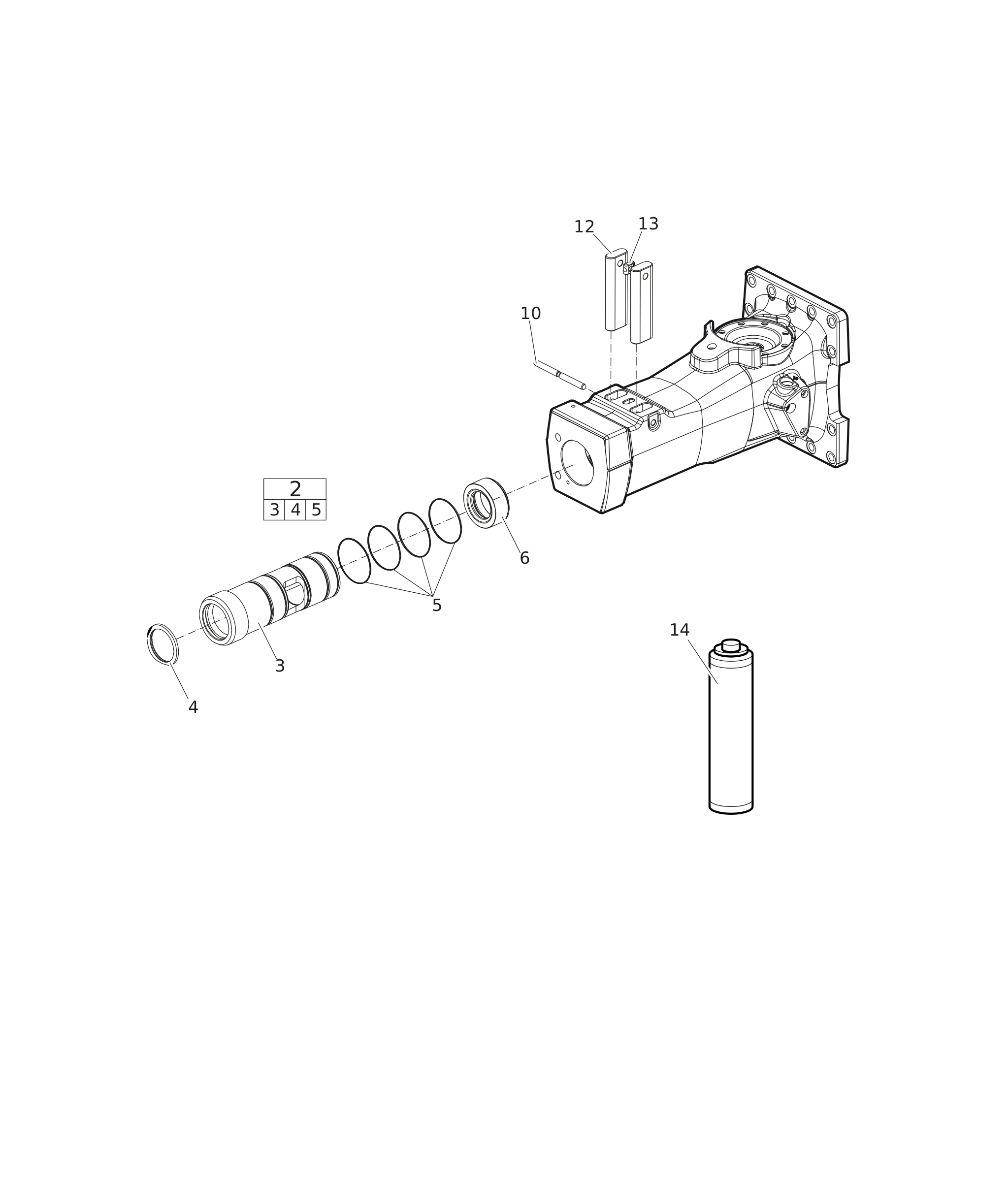

Lower hammer part kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315352195 | LOWER HAMMER PART KIT | 1 | ||||
| 3315302980 | BUSHING, complete | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| - | BUSHING | 1 | ||||
| 3315303000 | SCRAPER RING | 1 | ||||
| 0663210823 | O-RING | 4 | ||||
| 3315302800 | STOP RING | 1 | ||||
| 3315319100 | LOCK PIN | 1 | ||||
| 3315305900 | RETAINER BAR | 2 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 |
