Mechanical
Spare Parts

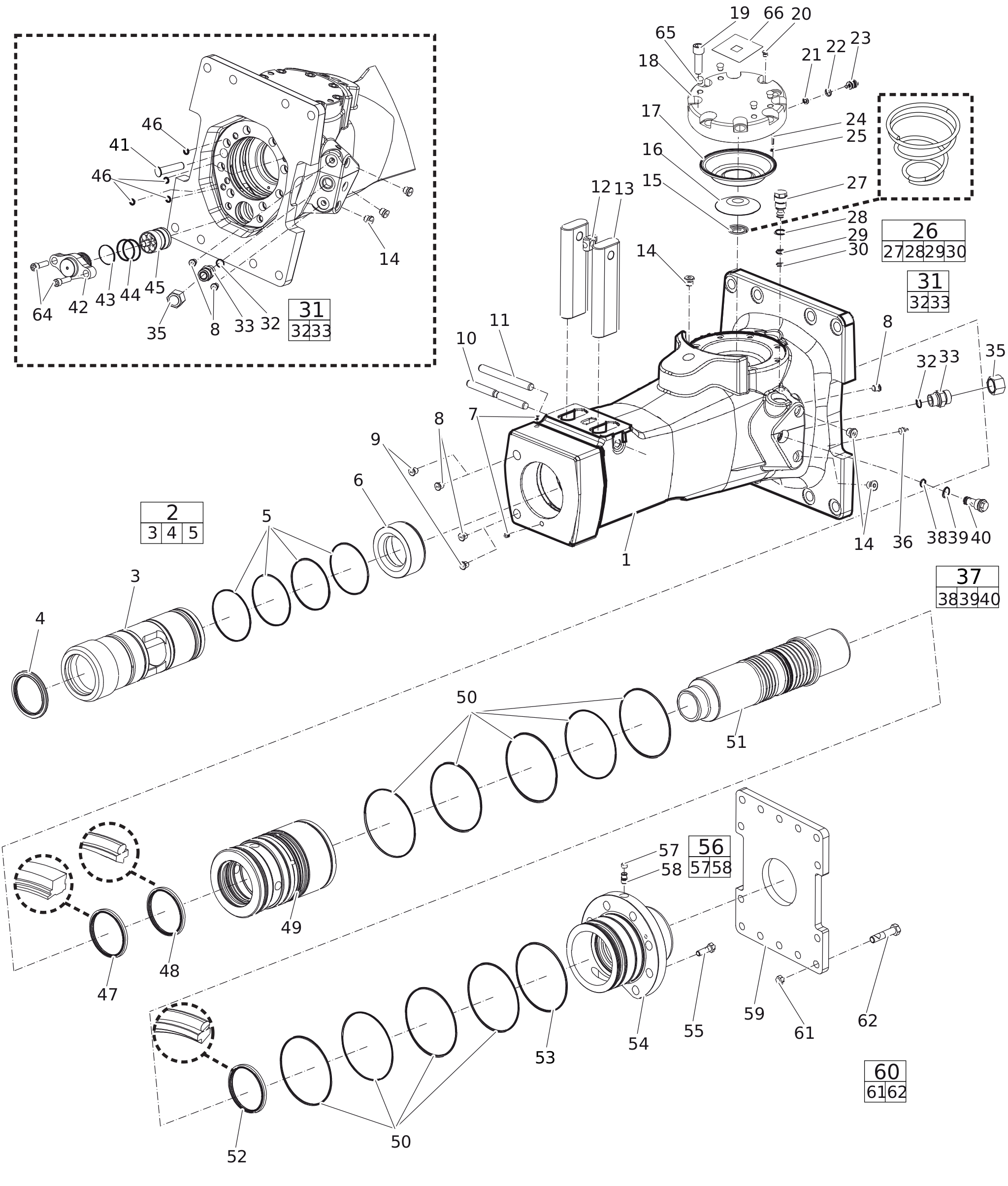

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315312480 | BUSHING, complete | 1 | ||||
| - | BUSHING, Ø 129 mm (Ø 5.08 in.) | 1 | ||||
| - | BUSHING, Ø 129 mm (Ø 5.08 in.) | 1 | ||||
| - | BUSHING, Ø 129 mm (Ø 5.08 in.) | 1 | ||||
| - | BUSHING, Ø 129 mm (Ø 5.08 in.) | 1 | ||||
| 3315353600 | SCRAPER RING | 1 | ||||
| 0663714700 | O-RING | 4 | ||||
| 3315312300 | STOP RING | 1 | ||||
| 0686100009 | PLUG | 2 | ||||
| 0686644207 | PLUG | 5 | ||||
| 3315395200 | WATER NOSSLE | 2 | ||||
| 3315155800 | LOCK PIN | 1 | ||||
| 0108169129 | SPRING PIN, option | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315155700 | RETAINER BAR | 2 | ||||
| 0686371801 | PLUG | 6 | ||||
| 3315303500 | COIL SPRING | 1 | ||||
| 3315303201 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315416300 | DIAPHRAGM | 1 | ||||
| 3315303100 | DIAPHRAGM COVER | 1 | ||||
| 0211196544 | HEXAGON SOCKET SCREW | 8 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 3315365800 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 9125621100 | O-RING | 1 | ||||
| 9125621100 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0661200401 | BACK-UP RING | 1 | ||||
| 0580001845 | NIPPLE, complete | 2 | ||||
| 0664000004 | SEAL RING | 1 | ||||
| - | NIPPLE | 1 | ||||
| - | NIPPLE | 1 | ||||
| - | NIPPLE | 1 | ||||
| - | NIPPLE | 1 | ||||
| 3361353486 | COVER | 2 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315369653 | RESTRICTOR, complete | 1 | For more restrictors, see section "Restrictors, complete". | |||
| - | RESTRICTOR, standard Ø 7.5 mm (Ø 0.30 in.) | 1 | ||||
| - | RESTRICTOR, standard Ø 7.5 mm (Ø 0.30 in.) | 1 | ||||
| - | RESTRICTOR, Ø 7.5 mm (Ø 0.30 in.) | 1 | ||||
| 3315336700 | PLUG | 1 | ||||
| 3315362820 | VALVE COVER | 1 | ||||
| 0663211491 | O-RING | 1 | ||||
| 0663990026 | SEAL RING | 2 | ||||
| 3315312100 | CONTROL VALVE | 1 | ||||
| 0665090014 | SEAL RING | 4 | ||||
| 0665909964 | WIPER | 1 | ||||
| 0665070147 | PISTON ROD SEAL | 1 | ||||
| 3315312000 | LINER | 1 | ||||
| 0663990032 | SEAL RING | 9 | ||||
| 3315311900 | PISTON | 1 | ||||
| 0665070148 | PISTON ROD SEAL | 1 | ||||
| 0663210417 | O-RING | 1 | ||||
| 3315312600 | BACK HEAD | 1 | ||||
| 0147155503 | SCREW, HEX HEAD | 8 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315307700 | BASE PLATE | 1 | ||||
| 3315323890 | SCREW SET | 1 | ||||
| - | NUT | 8 | ||||
| - | NUT | 8 | ||||
| - | NUT | 8 | ||||
| - | NUT | 8 | ||||
| - | SCREW, M20 x 90 mm | 8 | ||||
| - | SCREW, M20 x 90 mm | 8 | ||||
| - | SCREW, M20 x 90 mm | 8 | ||||
| - | SCREW, M20 x 90 mm | 8 | ||||
| 0211110495 | HEXAGON SOCKET SCREW | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 |
