Spare Parts

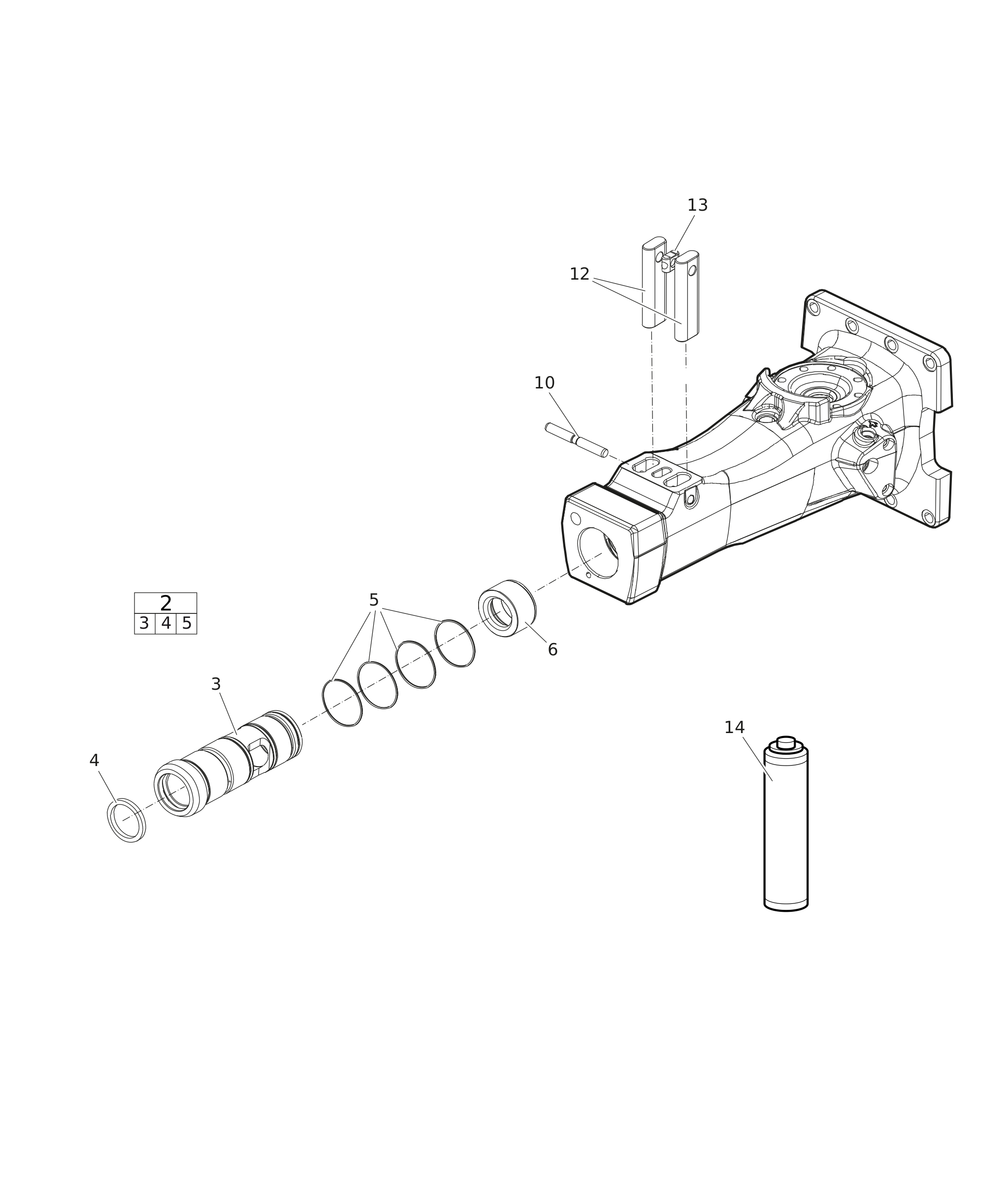

Lower hammer part kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315352145 | LOWER HAMMER PART KIT | 1 | ||||
| 3315354080 | BUSHING STANDARD, complete | 1 | ||||
| - | BUSHING, Ø 90 mm (Ø 3.54 in.) | 1 | ||||
| 3315356200 | SCRAPER RING | 1 | ||||
| 0663210498 | O-RING | 4 | ||||
| 3315277800 | STOP RING | 1 | ||||
| 3315135000 | LOCK PIN | 1 | ||||
| 3315134900 | RETAINER BAR | 2 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 |
