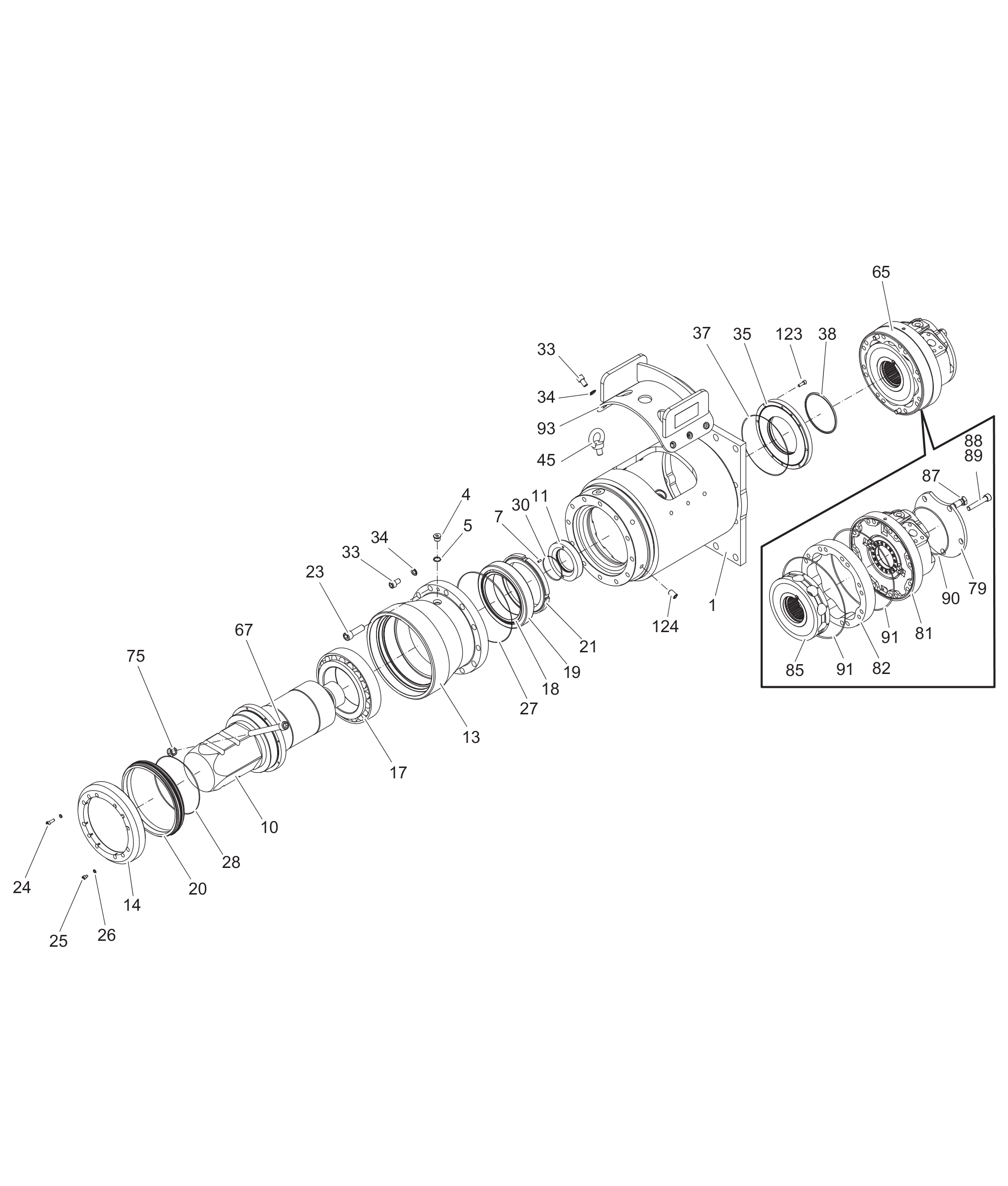

Longitudinal Drum Cutter, part 1
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311004226 | Intermediate bracket | 1 | ||||
| 3311000631 | Plug | 2 | ||||
| 3311001071 | Seal | 2 | ||||
| 3311003275 | Spring pin | 2 | ||||
| 3311003810 | Output shaft | 1 | ||||
| 3311003366 | Distance washer | 1 | ||||
| 3311002369 | Bearing flange | 1 | ||||
| 3311003417 | Sealing cover | 1 | ||||
| 3311000611 | Tapered roller bearing | 1 | ||||
| 3311000586 | Inner race (tapered roller bearing) | 1 | ||||
| 3311000588 | Outer race (tapered roller bearing) | 1 | ||||
| 3311000589 | Seal | 1 | ||||
| 3311004173 | Shaft nut | 1 | ||||
| 3311001842 | Allen screw | 12 | ||||
| 3311000628 | Allen screw | 8 | ||||
| 3311000591 | Allen screw | 4 | ||||
| 3311000592 | Usit-ring | 12 | ||||
| 3311000593 | O-ring | 1 | ||||
| 3311000594 | O-ring | 1 | ||||
| 3311003368 | O-ring | 1 | ||||
| 3311000743 | Allen screw | 8 | ||||
| 3311000533 | Pair of lock washers | 8 | ||||
| 3311003367 | Sealing cover | 1 | ||||
| 3311003369 | O-ring | 1 | ||||
| 3311000692 | Seal | 1 | ||||
| 3311002145 | Eye bolt | 1 | ||||
| 3311004885 | Motor complete | 1 | ||||
| 3311004884 | Motor complete | 1 | ||||
| 3311004067 | Motor complete | 1 | ERL 1100 - 3 | |||
| 3311001686 | Allen screw | 4 | ||||
| 3311000510 | Hexagonal nut | 4 | ||||
| 3311000143 | Cover (motor) | 1 | ||||
| 3311000277 | Distribution housing (motor) | 1 | ||||
| 3311000139 | Cam ring | 1 | ||||
| 3311000140 | Cam ring | 1 | ||||
| 3311000141 | Cam ring | 1 | ERL 1100 - 3 | |||
| 3311000142 | Clyinder block | 1 | ||||
| 3311000502 | Hexagon head screw | 5 | ||||
| 3311000579 | Allen screw | 14 | ||||
| 3311000580 | Allen screw | 2 | ||||
| 3311000537 | O-ring | 1 | ||||
| 3311000581 | O-ring | 2 | ||||
| 3311004229 | Cover | 1 | ||||
| 3311000630 | Allen screw | 8 | ||||
| 3311003512 | Bolt | 5 |
