Mechanical
Spare Parts

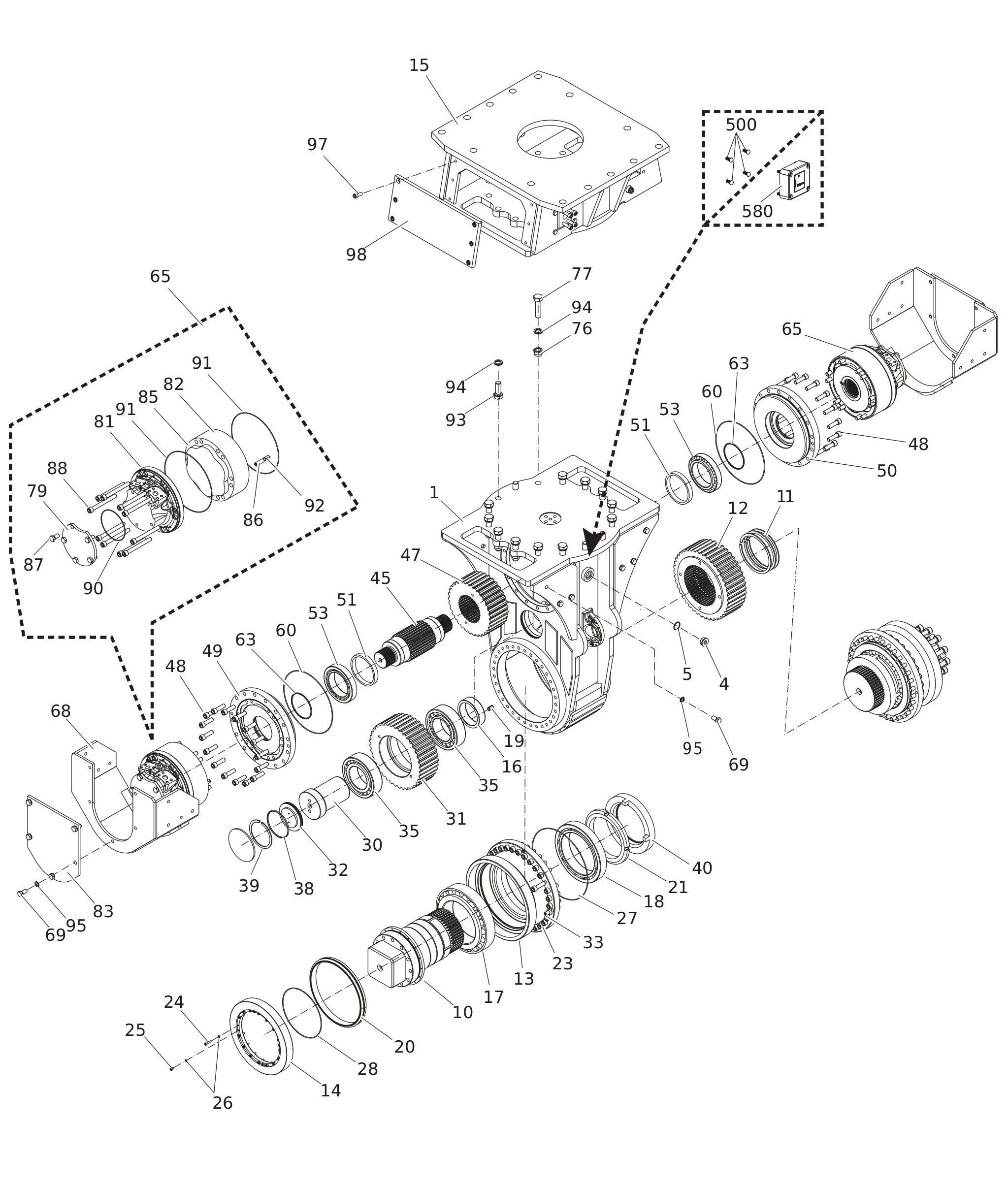

Transverse Drum Cutter, part 1
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311006123 | Gear housing | 1 | ||||
| 3311000583 | Plug | 2 | ||||
| 3311000584 | Seal | 2 | ||||
| 3311006077 | Output shaft | 2 | ||||
| 3311000697 | Lock ring | 3 | ||||
| 3311006090 | Output cogwheel | 1 | ||||
| 3311006078 | Housing (output shaft) | 2 | ||||
| 3311001599 | Sealing cover | 2 | ||||
| 3311006198 | Intermediate bracket | 1 | ||||
| 3311006109 | Distancering bolt | 1 | ||||
| 3311000698 | Tapered roller bearing | 2 | ||||
| 3311000699 | Tapered roller bearing | 2 | ||||
| 3311000910 | Clamping sleeve | 1 | ||||
| 3311000700 | Seal | 2 | ||||
| 3311000443 | Shaft nut | 2 | ||||
| 3311000682 | Allen screw | 64 | ||||
| 3311000704 | Allen screw | 32 | ||||
| 3311001068 | Allen screw | 8 | ||||
| 3311000592 | Usit-ring | 40 | ||||
| 3311000708 | O-ring | 2 | ||||
| 3311000709 | O-ring | 2 | ||||
| 3311006108 | Bolt | 1 | ||||
| 3311006089 | Idle cogwheel | 1 | ||||
| 3311006110 | Cover | 1 | ||||
| 3311003512 | Bolt | 8 | ||||
| 3311006137 | Cylindrical roller bearing | 2 | ||||
| 3311006138 | Sealing ring | 1 | ||||
| 3311006139 | Retaining ring | 1 | ||||
| 3311000448 | Lock ring | 2 | ||||
| 3311006107 | Drive shaft | 1 | ||||
| 3311006088 | Drive cogwheel | 1 | ||||
| 3311000682 | Allen screw | 32 | ||||
| 3311000395 | Flange (motor) | 1 | ||||
| 3311006135 | Flange (motor) | 1 | ||||
| 3311006134 | Distancering bolt | 2 | ||||
| 3311000689 | Tapered roller bearing | 2 | ||||
| 3311000691 | O-ring | 2 | ||||
| 3311000692 | Seal | 2 | ||||
| 3311001204 | Motor complete | 2 | ||||
| 3311001205 | Motor complete | 2 | only for drum cutters with HATCON / see separate chapter | |||
| 3311001206 | Motor complete | 2 | ||||
| 3311006133 | Cover (motor) | 2 | ||||
| 3311000502 | Hex. head screw | 5 | ||||
| 3311000508 | Hex nut | 12 | ||||
| 3311000577 | Hexagonal screw | 12 | ||||
| 3311000143 | Cover (motor) | 2 | ||||
| 3311001101 | Distribution housing (motor) | 2 | ||||
| 3311002963 | Cam ring | 2 | ||||
| 3311000189 | Cam ring | 2 | only for drum cutters with HATCON / see separate chapter | |||
| 3311000190 | Cam ring | 2 | ||||
| 3311006136 | Assembling cap | 2 | ||||
| 3311002964 | Clyinder block | 2 | ||||
| 3311000203 | Tension pin (motor) | 4 | ||||
| 3311000502 | Hex. head screw | 10 | ||||
| 3311000683 | Allen screw | 20 | ||||
| 3311000537 | O-ring | 2 | ||||
| 3311000687 | O-ring | 4 | ||||
| 3311000204 | Fitting sleeve (motor) | 4 | ||||
| 3311000503 | Hexagon head screw | 4 | ||||
| 3311000521 | Pair of lock washers | 16 | ||||
| 3311000532 | Lock washers | 5 | ||||
| 3311000549 | Allen screw | 12 | ||||
| 3311006136 | Assembling cap | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| - | HATCON | 1 | only for drum cutters with HATCON / see separate chapter |
