Spare Parts

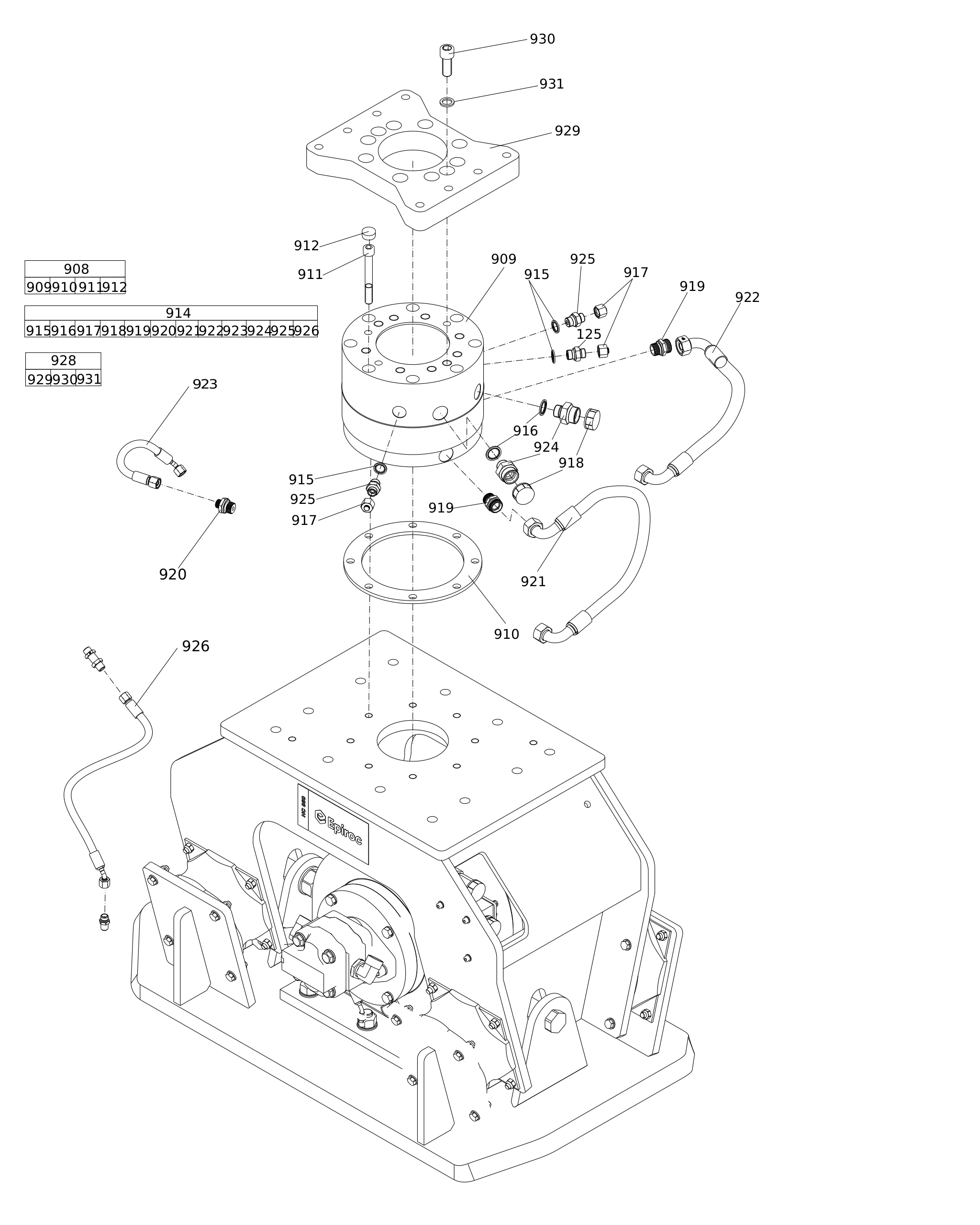

Optional equipment part 2
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3316000250 | ROTATION KIT HC 850 | 1 | ||||
| 3376100987 | ROTATION UNIT | 1 | ||||
| 3372100062 | ROTATOR | 1 | ||||
| 3376100990 | SPACER | 1 | ||||
| 0211149300 | HEXAGON SOCKET SCREW | 8 | ||||
| 5750534996 | PLUG | 8 | ||||
| 3316000259 | HOSE/FITTING KIT HC 850 | 1 | ||||
| 0661100027 | SEAL WASHER 21.54x28.58x2.47 | 3 | ||||
| 0661100029 | SEAL WASHER 27.05x34.93x2.47 | 2 | ||||
| 3376100873 | PLUG | 3 | ||||
| 0686925030 | CAP | 2 | ||||
| 0580001659 | PIPE COUPLING | 2 | ||||
| 5750535354 | ADAPTER GE8L | 1 | ||||
| 3316000224 | HYDRAULIC HOSE (P) | 1 | ||||
| 3316000225 | HYDRAULIC HOSE (T) | 1 | ||||
| 3316000273 | HYDRAULIC HOSE | 1 | ||||
| 3376520023 | FITTING | 2 | ||||
| 3376560020 | FITTING | 3 | ||||
| 3316000272 | HYDRAULIC HOSE | 1 | ||||
| 3363115678 | SANDWICH PLATE COMPLETE | 1 | ||||
| 3363115680 | SANDWICH PLATE | 1 | ||||
| 3360026782 | ALLEN SCREW | 10 | ||||
| 3361850748 | LOCK WASHER | 10 |
