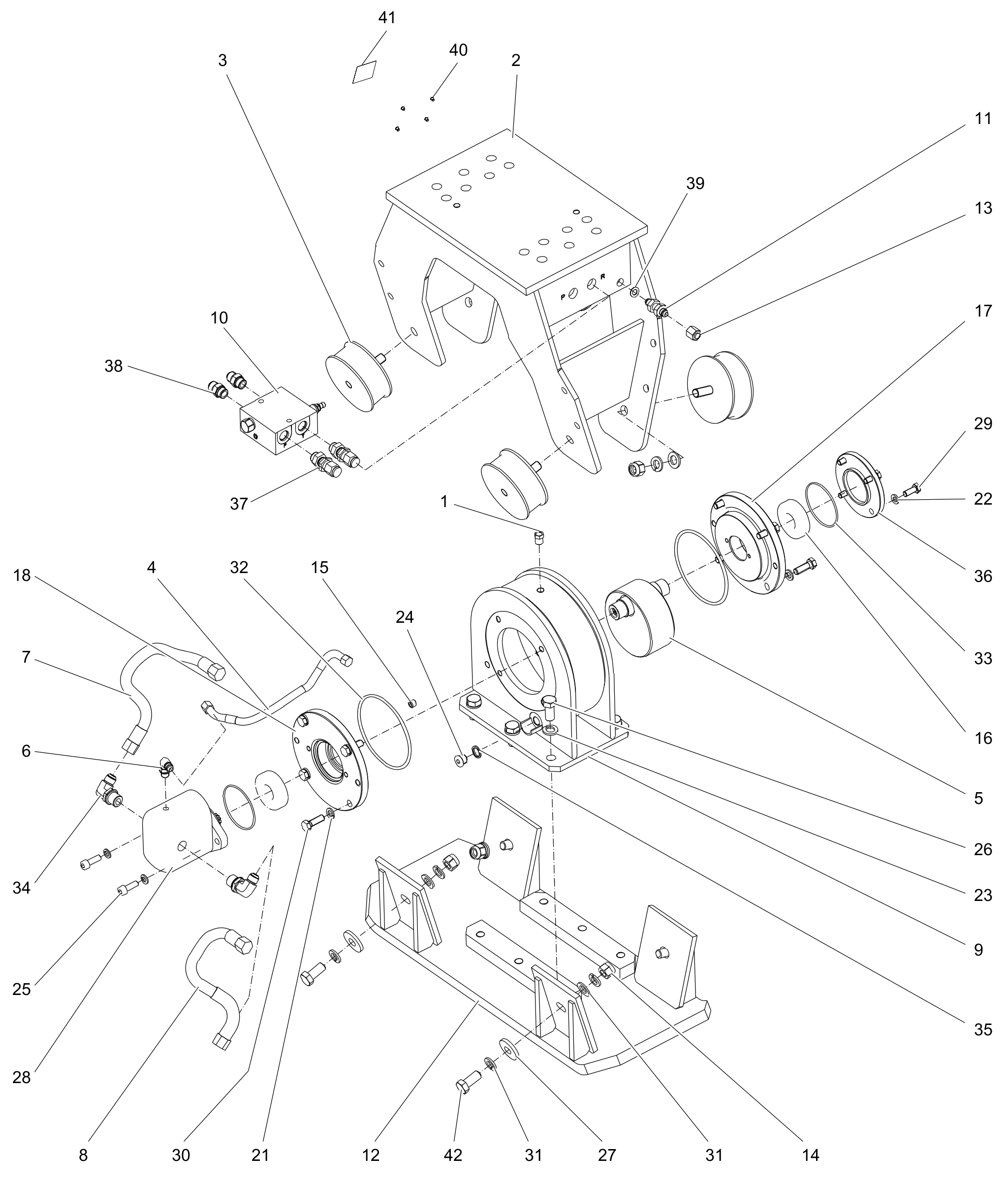

Hydraulic compactor
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3376100779 | Vent valve | 1 | ||||
| 3376695406 | Outer housing | 1 | ||||
| 3376100907 | Rubber isolator | 4 | ||||
| 3376101521 | Hydraulic hose | 1 | ||||
| 3376689004 | Rotor | 1 | ||||
| 5500488000 | NIPPLE | 1 | ||||
| 3376101527 | Hydraulic hose | 1 | ||||
| 3376101526 | Hydraulic hose | 1 | ||||
| 3376695409 | Rotor housing | 1 | ||||
| 3376689007 | Valve block, hydraulic motor side and carrier side: female thread 3/4" - 16" UNF | 1 | ||||
| 3176649600 | NIPPLE | 1 | ||||
| 3376695403 | Tamper plate | 1 | ||||
| 3176542900 | CAP | 1 | ||||
| 0291112825 | LOCK NUT | 4 | ||||
| 0686612800 | PLUG | 1 | ||||
| 3376100751 | Bearing | 2 | ||||
| 3376695012 | Bearing retainer | 1 | ||||
| 3376695011 | Bearing retainer | 1 | ||||
| 0333217421 | SPRING WASHER | 8 | ||||
| 0333223000 | SPRING WASHER | 6 | ||||
| 3316000063 | SPRING WASHER | 6 | ||||
| 0686371626 | PLUG | 1 | ||||
| 0211136300 | CAP SCREW | 2 | ||||
| 0147147903 | SCREW, HEX HEAD | 6 | ||||
| 0300012923 | PLAIN WASHER | 4 | ||||
| 3376100833 | Hydraulic motor | 1 | ||||
| 0147136203 | SCREW, HEX HEAD | 4 | ||||
| 0147140203 | SCREW, HEX HEAD | 8 | ||||
| 0333217423 | SPRING WASHER | 8 | ||||
| 0663211340 | O-RING | 2 | ||||
| 0663212015 | O-ring 84 x 3 mm 70° IRH (NBR) | 2 | ||||
| 3376100750 | Elbow joint 90° | 2 | ||||
| 3377016375 | SEAL-RING - Bounded seal - Oil outlet 3/8 USS | 1 | ||||
| 3376695013 | Bearing cover | 1 | ||||
| 3376100748 | Fitting, bulkhead ¾" UNF 37º - JIC ½" male | 2 | ||||
| 3176531300 | CAP | 2 | ||||
| 5750534088 | Washer | 1 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 0147147603 | Screw | 4 |
