Spare Parts

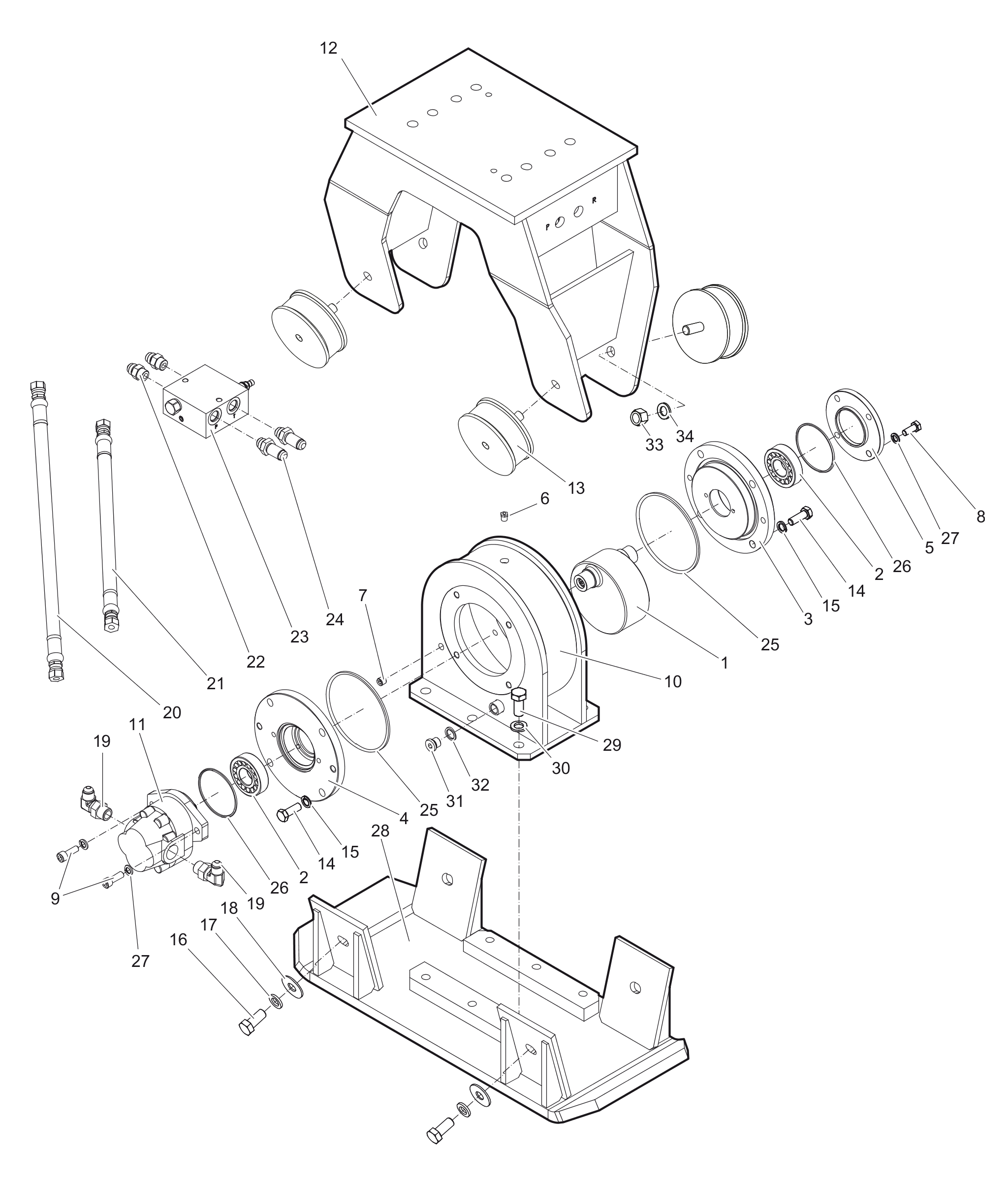

Hydraulic compactor
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3376689004 | Rotor | 1 | ||||
| 3376100751 | Bearing | 2 | ||||
| 3376695012 | Bearing retainer | 1 | ||||
| 3376695011 | Bearing retainer | 1 | ||||
| 3376695013 | Bearing cover | 1 | ||||
| 3376100779 | Vent valve | 1 | ||||
| 3371813141 | Threaded plug | 1 | ||||
| 3378034102 | Hexagon head bolt | 4 | ||||
| 3371820715 | Hexagon head bolt | 2 | ||||
| 3376695109 | Rotor housing | 1 | ||||
| 3376100833 | Hydraulic motor | 1 | ||||
| 3376695106 | Outer housing | 1 | ||||
| 3376100907 | Rubber isolator | 4 | ||||
| 3376100170 | Hexagon head bolt | 8 | ||||
| 3371806705 | Washer | 8 | ||||
| 3378302501 | Hexagon head bolt | 4 | ||||
| 3376100143 | Washer | 4 | ||||
| 3376100753 | Washer | 4 | ||||
| 3376100750 | Elbow joint 90° | 2 | ||||
| 3376101484 | Hydraulic hose | 1 | ||||
| 3376101518 | Hydraulic hose | 1 | ||||
| 3376100747 | Fitting, straight ¾" UNF 37º - JIC ½" male | 2 | ||||
| 3376689007 | Valve block, hydraulic motor side and carrier side: female thread 3/4" - 16" UNF | 1 | ||||
| 3376100748 | Fitting, bulkhead ¾" UNF 37º - JIC ½" male | 2 | ||||
| 3376100074 | O-ring | 2 | ||||
| 3376100784 | O-ring | 2 | ||||
| 3376100623 | Washer | 6 | ||||
| 3376695103 | Tamper plate | 1 | ||||
| 3378302501 | Hexagon head bolt | 6 | ||||
| 3376100143 | Washer | 6 | ||||
| 3371803707 | Threaded plug 3/8 in. | 1 | ||||
| 3377016375 | SEAL-RING - Bounded seal - Oil outlet 3/8 USS | 1 | ||||
| 3371816706 | Nut | 4 | ||||
| 3371816712 | Washer | 4 |
