Mechanical
Spare Parts

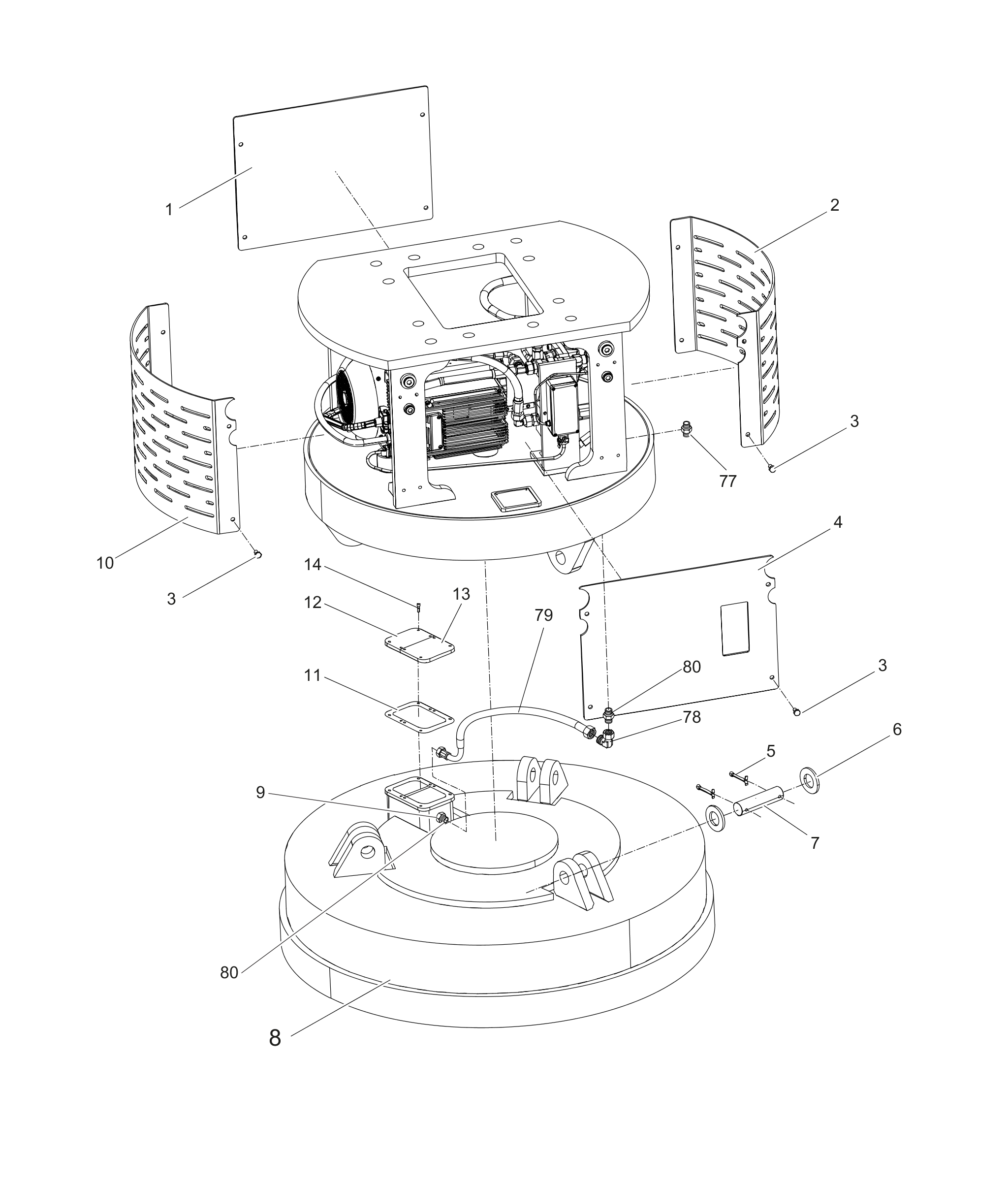

Hydro Magnet HM 2000 F
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3382060201 | Cover, back | 1 | ||||
| 3382060202 | Cover, right | 1 | ||||
| 3382060203 | Hexagon head bolt | 16 | ||||
| 3382060204 | Cover, font | 1 | ||||
| 3382060205 | Pin | 6 | ||||
| 3382060206 | Disk | 6 | ||||
| 3382060207 | Bolt | 3 | ||||
| 3382060209 | Magnet plate | 1 | ||||
| 3382060210 | Fitting | 1 | ||||
| 3382060211 | Cover, left | 1 | ||||
| 3382060308 | Seal | 1 | ||||
| 3382060307 | Cover | 1 | small | |||
| 3382060306 | Cover | 1 | big | |||
| 3382060309 | Allen screw | 8 | ||||
| 3382060210 | Fitting | 1 | ||||
| 3382060311 | Fitting | 1 | ||||
| 3382060312 | Hydraulic hose, length 570 mm (22 in.) | 1 | ||||
| 3382060313 | Fitting | 2 |
