Mechanical

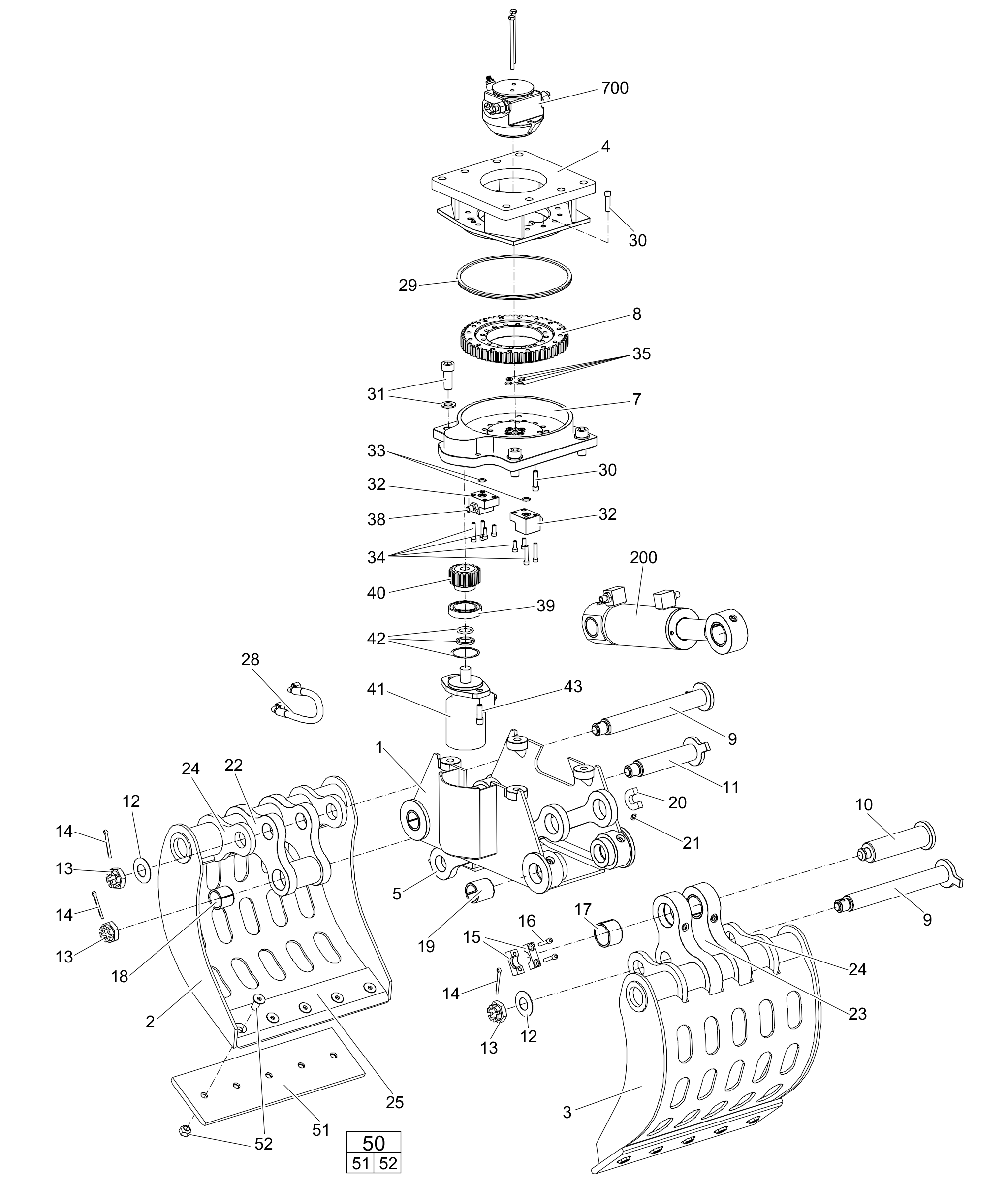

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363117465 | Housing | 1 | ||||
| 3363106086 | Grapple leaf, left | 1 | ||||
| 3363106087 | Grapple leaf, right | 1 | ||||
| 3363317466 | Upper part | 1 | ||||
| 3363106093 | Linkage | 1 | ||||
| 3363117467 | Live ring base | 1 | ||||
| 3363106200 | Live ring | 1 | ||||
| 3363106088 | Bolt | 2 | ||||
| 3363106092 | Bolt | 1 | ||||
| 3363106094 | Bolt | 1 | ||||
| 3363117468 | Disc | 2 | ||||
| 3363106097 | Nut | 3 | ||||
| 3363106098 | Splint pin | 3 | ||||
| 3363106091 | Clamp kit | 1 | with 2 clamps | |||
| 3363106090 | Allen screw kit | 1 | with 2 Allen screws | |||
| 3363117469 | Bearing bush | 2 | ||||
| 3363117470 | Bearing bush | 2 | ||||
| 3363106089 | Bearing bush | 4 | ||||
| 3363117471 | Lock piece | 2 | ||||
| 3363117472 | Grease nipple kit | 1 | with 11 grease nipples | |||
| 3363117473 | Web plate | 2 | ||||
| 3363117474 | Web plate | 2 | ||||
| 3363117475 | Web plate | 4 | ||||
| 3363117476 | Blade support | 2 | ||||
| 3363117478 | Hydraulic hose kit | 1 | with 4 hydraulic hoses | |||
| 3363117479 | V-ring | 1 | ||||
| 3363106202 | Allen screw kit | 1 | with 16/16 Allen screws | |||
| 3363117480 | Allen screw/washer kit | 1 | with 4 Allen screws/4 washers | |||
| 3363106206 | Connection block | 2 | ||||
| 3363106201 | Seal kit | 1 | with 2 o-rings | |||
| 3363106207 | Allen screw kit | 1 | with 4/4 Allen screws | |||
| 3363117481 | Seal kit | 1 | with o-rings | |||
| 3363117482 | Connecting kit | 1 | with 4 nipples | |||
| 3363098540 | Bearing | 1 | ||||
| 3363106099 | Pinion | 1 | ||||
| 3363106096 | Hydraulic motor | 1 | ||||
| 3363117483 | Seal kit (hydraulic motor) | 1 | ||||
| 3363117484 | Allen screw kit | 1 | with 2 Allen screws | |||
| 3363106246 | Blade kit | 1 | ||||
| 3363117477 | Blade kit | 1 | ||||
| 3363106209 | Allen screw/hexagon nut kit | 1 | ||||
| 3363106219 | Hydraulic cylinder | 1 | see separate chapter | |||
| 3363106211 | Rotary transmission | 1 | see separate chapter |
