Spare Parts

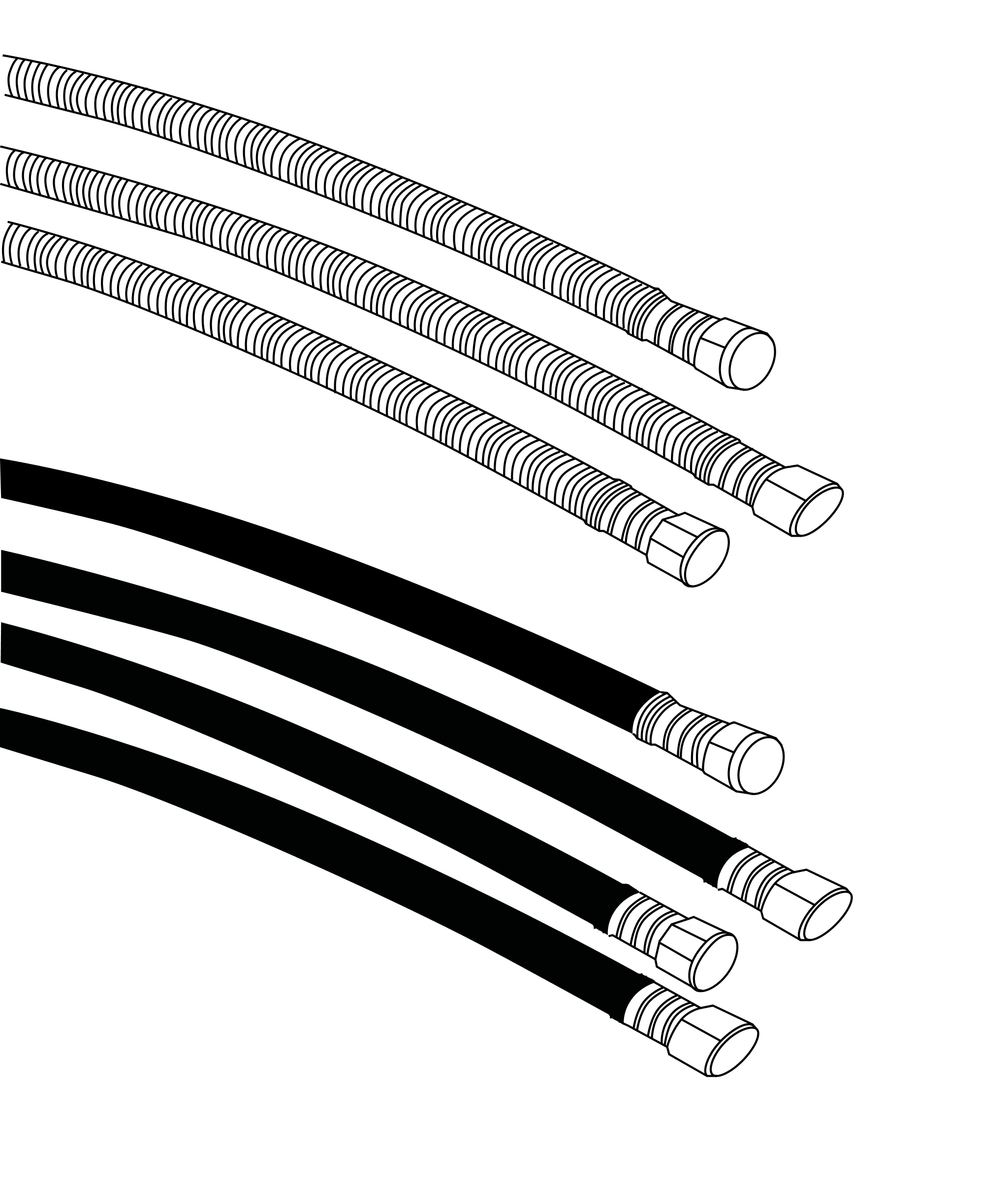

Hydraulic hoses

Illustration for 0
Illustration for 0
#
Part number
Name
QTY
Remarks
Information
-STANDARD CONNECTION HOSES1
3363491002HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 1500 mm (59 in.)
3363115423HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 1750 mm (69 in.)
3363115424HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 2000 mm (79 in.)
3363115425HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 2400 mm (94 in.)
-HEAVY DUTY CONNECTION HOSES1
3360995717HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°,length 1.5 m (59 in.)
3363115426HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°,length 1750 mm (69 in.)
3362235159HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 2.0 m (79 in.)
3363083313HYDRAULIC HOSE2I.D. 15 (0.59 in.), both ends 18 L (M 26 x 1.5) conical seal 24°, length 2.4 m (94 in.)
