Spare Parts

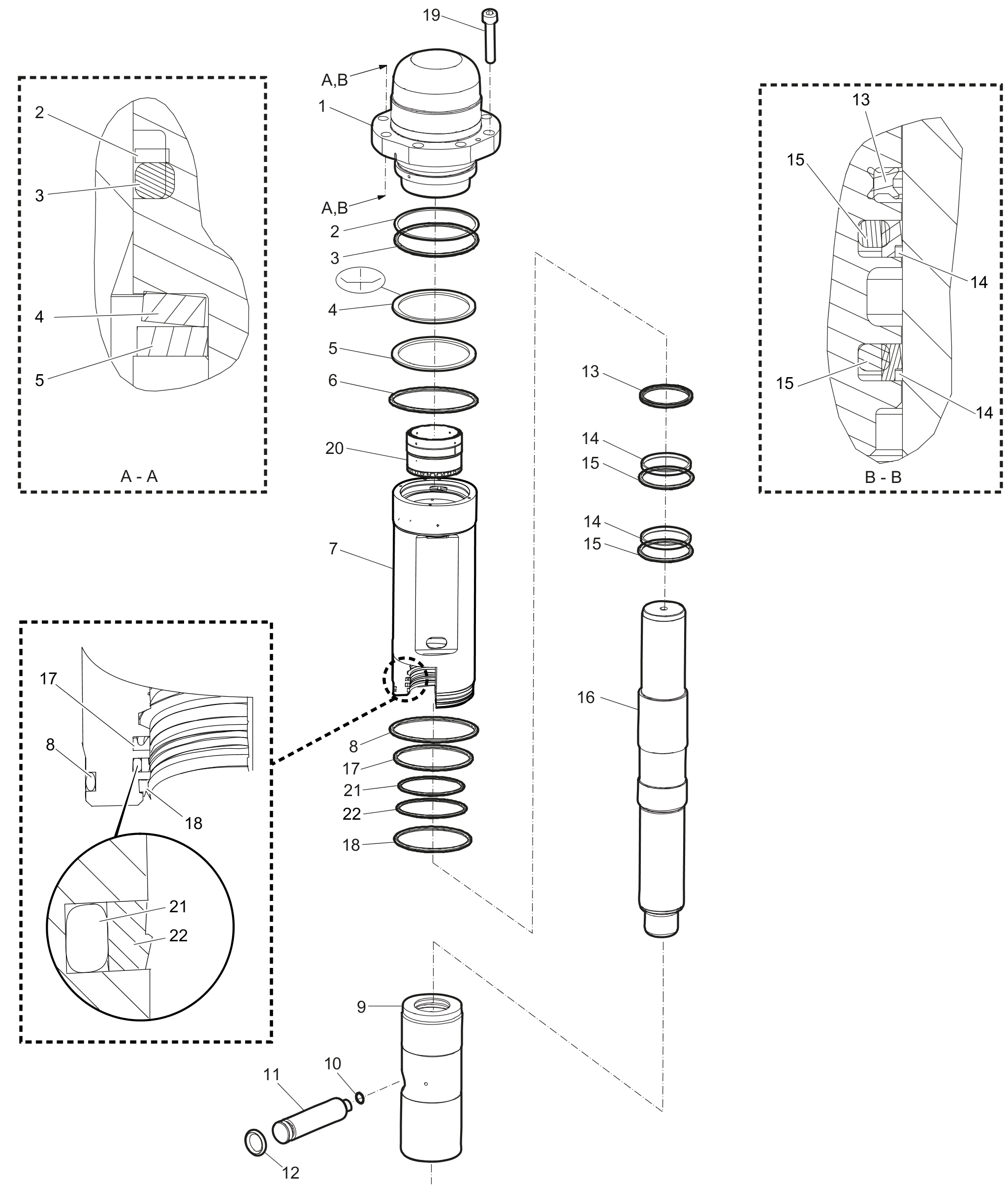

Percussion unit
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315413300 | BACK HEAD | 1 | ||||
| 3361192023 | BACK-UP RING | 1 | ||||
| 3361192022 | O-RING | 1 | ||||
| 3361140004 | PLATE SPRING | 1 | ||||
| 3361140005 | SPACER | 1 | ||||
| 3315296620 | SEAL | 1 | One piece | |||
| 3361140002 | CYLINDER BUSH | 1 | ||||
| 3361192025 | O-RING | 1 | ||||
| 3361140009 | WEAR BUSH | 1 | ||||
| 3361192066 | O-RING | 1 | ||||
| 3315410210 | TOOL RETAINER | 1 | ||||
| 0663212006 | O-RING | 1 | ||||
| 3361192017 | SEAL | 1 | ||||
| 3361192018 | SEAL | 2 | ||||
| 3361192019 | O-RING | 2 | ||||
| 3315305130 | PISTON | 1 | ||||
| 3361192027 | SEAL | 1 | ||||
| 3361192030 | WIPER | 1 | ||||
| 0211148303 | SCREW | 8 | ||||
| 3361140106 | CONTROL VALVE | 1 | ||||
| 3361192029 | O-RING | 1 | ||||
| 3361192015 | O-RING | 1 |
