Mechanical

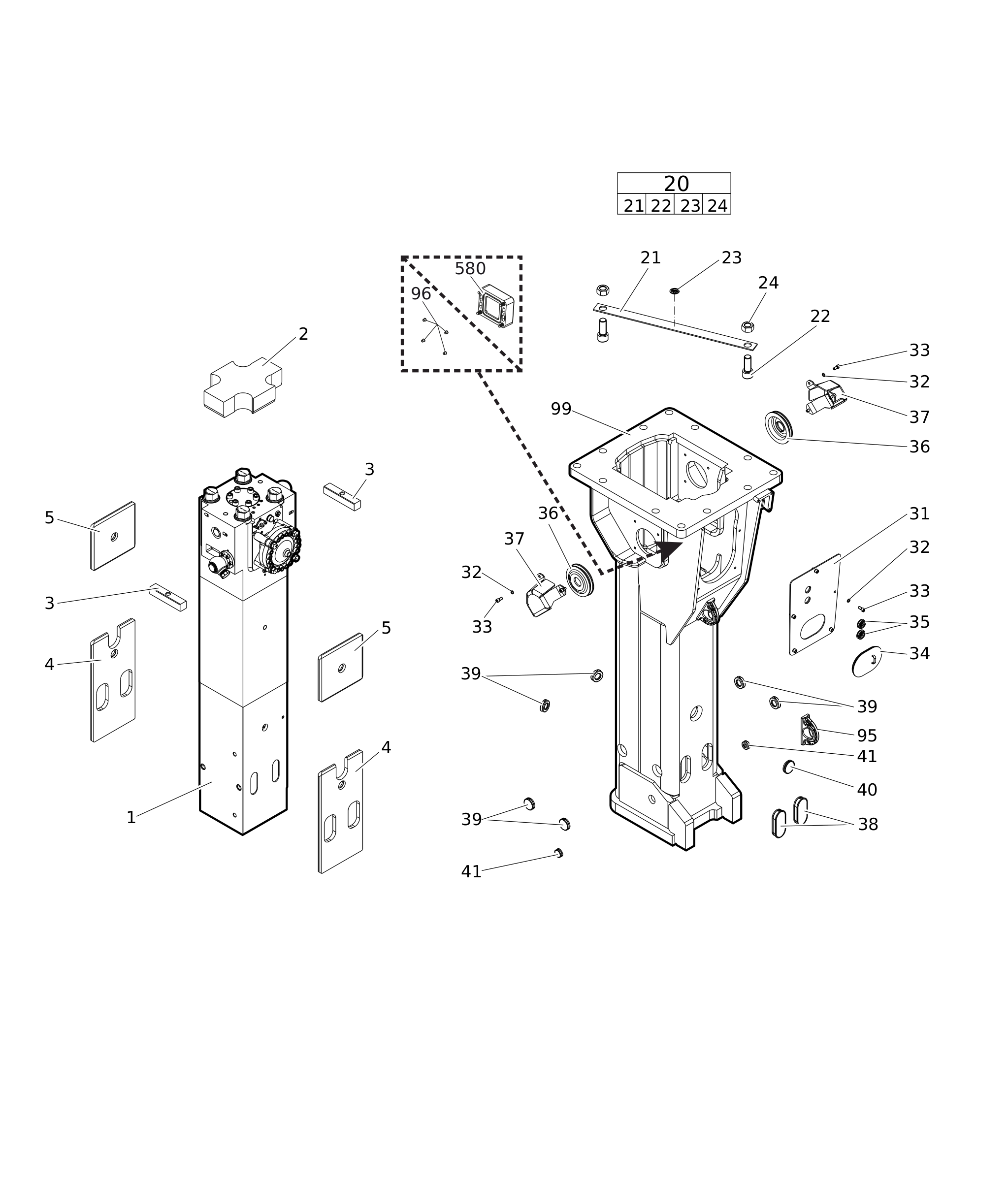

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | Percussion unit | 1 | see separate chapter | |||
| 3363105345 | Elastic pad | 1 | ||||
| 3363105817 | Shock absorber | 2 | ||||
| 3363115360 | Guide plate | 2 | ||||
| 3363115361 | Guide plate | 2 | ||||
| 3363094826 | Transport safety device complete | 1 | ||||
| - | Transport safety device | 1 | ||||
| 3360114151 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103255 | NUT | 2 | ||||
| 3363120170 | Cover | 1 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 11 | ||||
| 3360103750 | ALLEN SCREW | 11 | ||||
| 3363092697 | COVER | 1 | ||||
| 3363105987 | Plug | 2 | ||||
| 3363115515 | Cover | 2 | ||||
| 3363121816 | SWIVEL JOINT COVER | 2 | ||||
| 3363086013 | Plug | 2 | ||||
| 3363111912 | Plug | 6 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363086015 | PLUG | 2 | ||||
| 3363111995 | LIFTING EYE | 1 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363120165 | Breaker box | 1 | with item 95 and 96 | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
