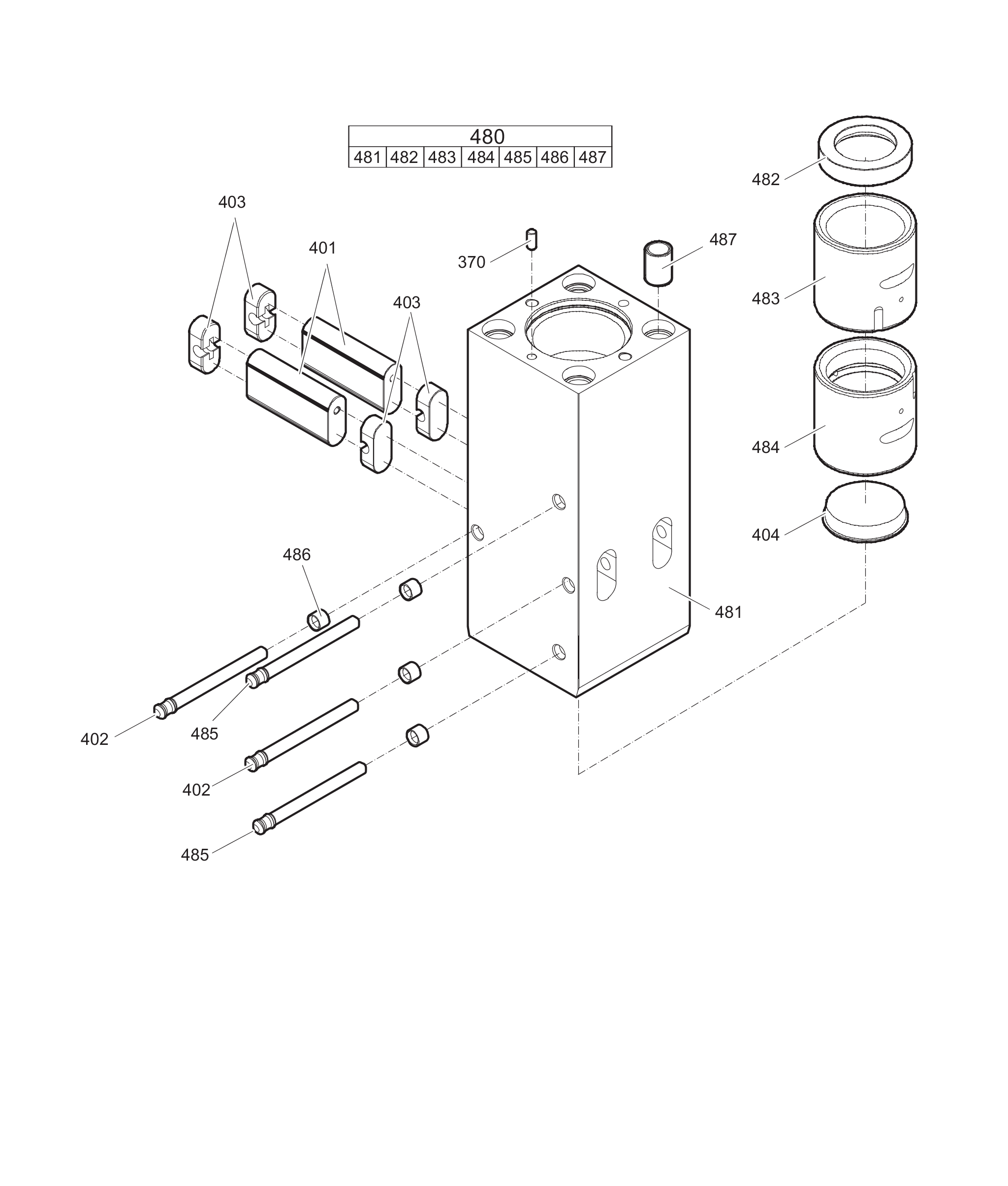

Percussion unit part 3: lower breaker part
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360106784 | Parallel pin 14X28 | 1 | ||||
| 3360993029 | Retainer bar | 2 | ||||
| 3362261850 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363031715 | PROTECTIVE CAP | 1 | ||||
| 3363089505 | Lower breaker part complete | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19).B | bronze see chapter Optional parts | |||
| - | Lower breaker part | 1 | ||||
| 3363069073 | Impact ring | 1 | ||||
| 3363069353 | Wear bush | 1 | ||||
| 3363088669 | Wear bush (steel) | 1 | ||||
| 3362261850 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3363031774 | Threaded insert | 4 |
