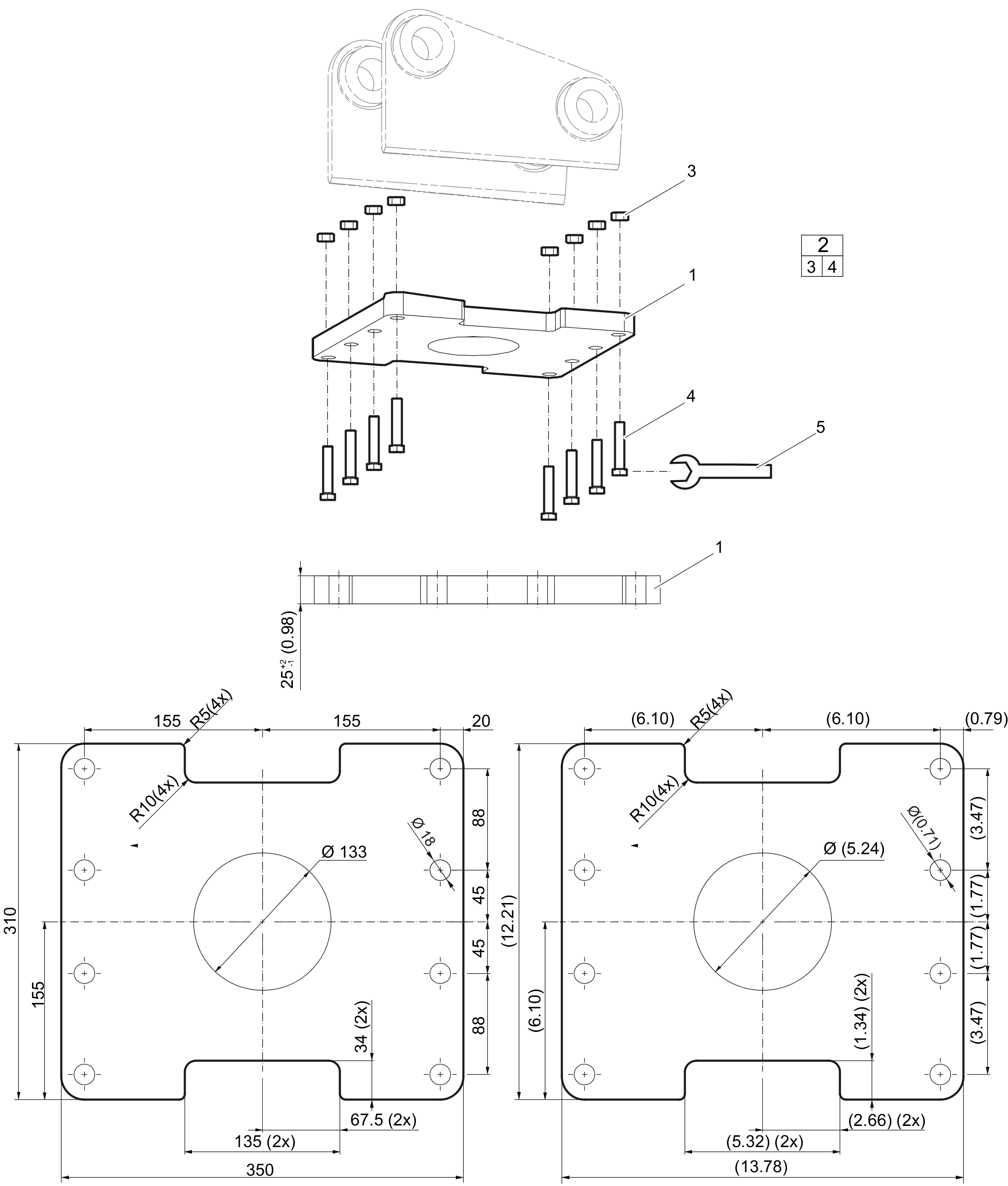

Base plate (4) SB 202, ES 60, HC 308, HC 350, HC 409, HC 450
Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315295100 | BASE PLATE | 1 | material: EN10025-S355 J2G3 | |||
| 3315296490 | BOLT KIT | 1 | ||||
| 0266211400 | Hex. Nut | 8 | ||||
| 3315299500 | Hexagon screw | 8 | ||||
| 3360430655 | OPEN END SPANNER (24/27 mm) | 1 |
