Spare Parts

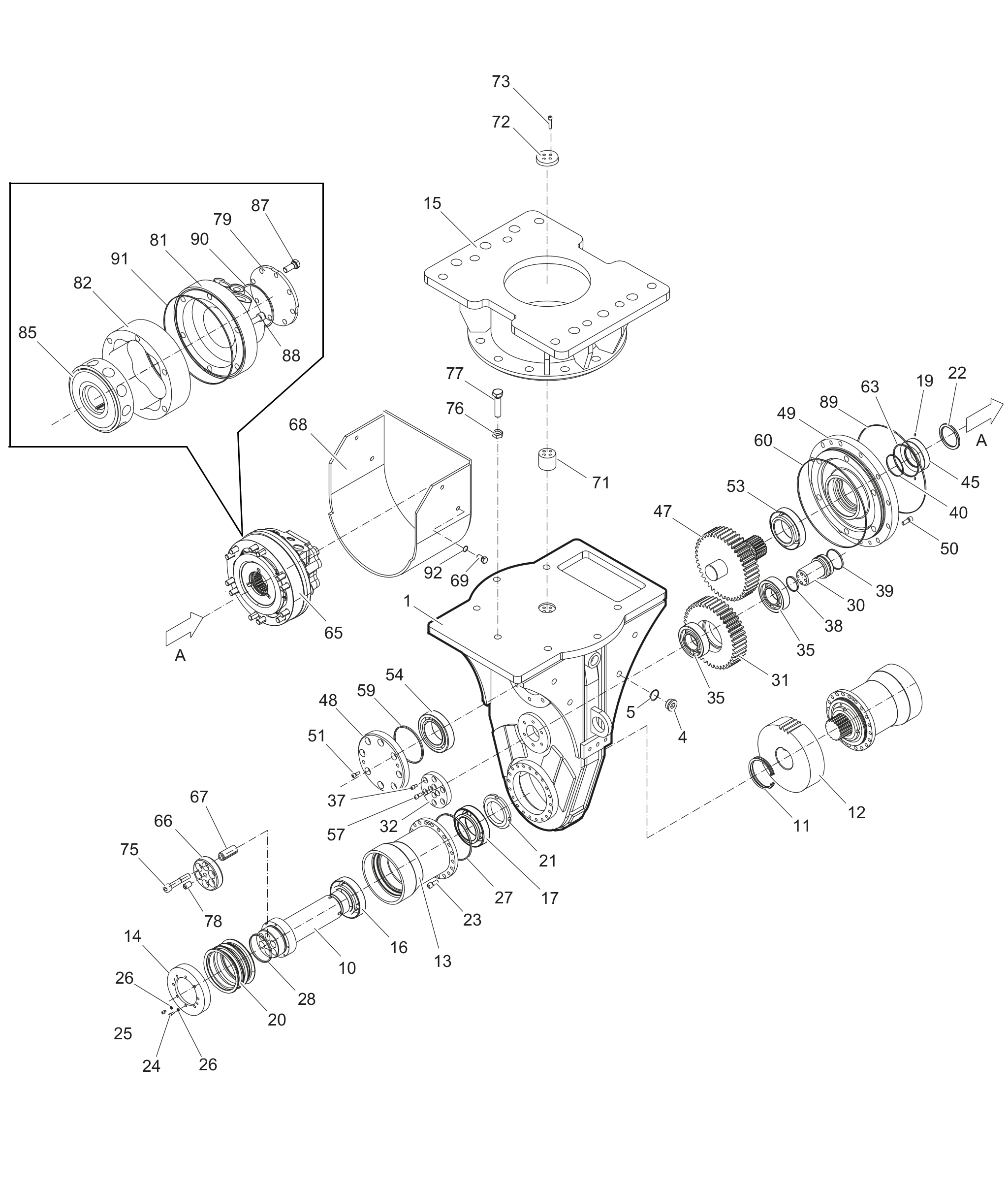

e91df68a-217c-41b8-b7d5-cec899afdbcb Transverse Drum Cutter, part 1
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311000309 | Gear housing | 1 | ||||
| 3311000631 | Plug | 2 | ||||
| 3311001071 | Seal | 2 | ||||
| 3311002296 | Output shaft | 2 | ||||
| 3311000560 | Lock ring | 2 | ||||
| 3311000311 | Output cogwheel | 1 | ||||
| 3311003146 | Flange | 2 | ||||
| 3311001240 | Sealing cover | 2 | ||||
| 3311004466 | Rotatable upper part | 1 | ||||
| 3311001219 | Tapered roller bearing | 2 | ||||
| 3311000625 | Tapered roller bearing | 2 | ||||
| 3311000561 | Fitting key | 2 | ||||
| 3311001220 | Seal | 2 | ||||
| 3311000360 | Shaft nut | 2 | ||||
| 3311005773 | Ring | 1 | ||||
| 3311000562 | Allen screw | 48 | ||||
| 3311000563 | Allen screw | 16 | ||||
| 3311000564 | Allen screw | 4 | ||||
| 3311002978 | Usit-ring | 20 | ||||
| 3311000565 | O-ring | 2 | ||||
| 3311000735 | O-ring | 2 | ||||
| 3311000314 | Bolt | 1 | ||||
| 3311000315 | Idle cogwheel | 1 | ||||
| 3311002970 | Cover (motor) | 1 | ||||
| 3311000623 | Cylindrical roller bearing | 2 | ||||
| 3311000603 | Allen screw | 6 | ||||
| 3311000566 | O-ring | 1 | ||||
| 3311000567 | O-ring | 2 | ||||
| 3311000568 | O-ring | 1 | ||||
| 3311001121 | Sealing | 1 | ||||
| 3311000316 | Spur gear drive | 1 | ||||
| 3311002971 | Cover | 1 | ||||
| 3311001624 | Flange (motor) | 1 | ||||
| 3311000705 | Allen screw | 12 | ||||
| 3311000569 | Allen screw | 8 | ||||
| 3311000625 | Tapered roller bearing | 1 | ||||
| 3311000624 | Tapered roller bearing | 1 | ||||
| 3311003721 | Allen screw | 4 | ||||
| 3311000570 | O-ring | 1 | ||||
| 3311000761 | O-ring | 1 | ||||
| 3311000725 | Seal | 1 | ||||
| 3311001166 | Hydraulic motor | 1 | ER 50 - 1 X | |||
| 3311001167 | Hydraulic motor | 1 | ER 50 - 2 X | |||
| 3311001168 | Hydraulic motor | 1 | ER 50 - 3 X | |||
| 3311001169 | Hydraulic motor | 1 | ER 50 - 4 X | |||
| 3311001248 | Cover | 2 | ||||
| 3311003168 | Clamping sleeve | 12 | ||||
| 3311000317 | Cover (motor) | 1 | ||||
| 3311001342 | Hexagon head screw | 4 | ||||
| 3311000318 | Centering pin | 1 | ||||
| 3311000319 | Plate (Centering pin) | 1 | ||||
| 3311000745 | Allen screw | 4 | ||||
| 3311001657 | Allen screw | 12 | ||||
| 3311001265 | Lock nut | 7 | ||||
| 3311000571 | Hexagon head screw | 7 | ||||
| 3311004831 | Threaded pin | 2 | ||||
| 3311002874 | Overpressure cover (motor) | 1 | ||||
| 3311001097 | Distribution housing (motor) | 1 | ||||
| 3311002040 | Cam ring | 1 | ER 50 - 1 X | |||
| 3311001716 | Cam ring | 1 | ER 50 - 2 X | |||
| 3311001993 | Cam ring | 1 | ER 50 - 3 X | |||
| 3311002181 | Cam ring | 1 | ER 50 - 4 X | |||
| 3311001098 | Clyinder block | 1 | ||||
| 3311001575 | Hexagon head screw | 8 | ||||
| 3311001658 | Allen screw | 12 | ||||
| 3311001659 | O-ring (Cam ring) | 1 | ||||
| 3311003119 | O-ring (Overpressure cover) | 1 | ||||
| 3311003122 | O-ring (Cam ring) | 1 | ||||
| 3311000550 | Pair of lock washers | 4 |
